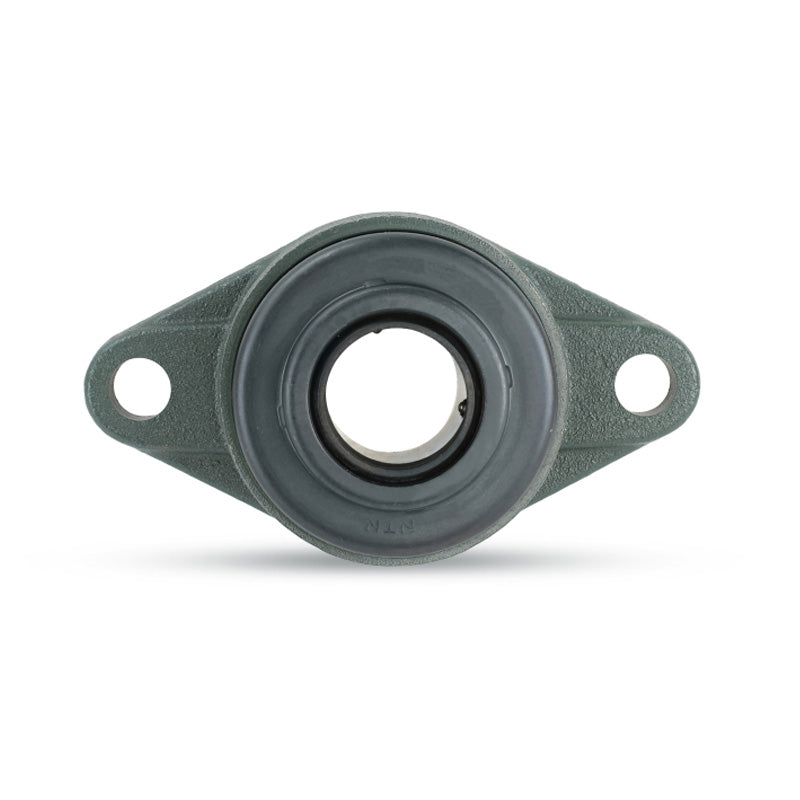

NTN C-UCFL322D1 Metric Two Bolt Oval Cast Iron Flange Housing with 110mm Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
NTN C-UCFL322D1 Metric Two Bolt Oval Cast Iron Flange Housing with 110mm Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
Out of stock
Share this product
Description
Description
UCFL300 Series Heavy Duty 2 Bolt Oval Housings: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 110mm
- Style:
- UCFL
- Bolt Hole Centres:
- 390mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 110mm |
| H | 470mm |
| J | 390mm |
| A<sub>2</sub> | 60mm |
| A<sub>1</sub> | 42mm |
| A | 96mm |
| N | 44mm |
| L | 300mm |
| B | 117mm |
| S | 46mm |
| A<sub>5</sub> | 160mm |
| L<sub>1</sub> | 315mm |
| L<sub>2</sub> | 150mm |
| Fixing bolt | M39 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 227 kN |
| Static load C<sub>0r</sub> | 179 kN |
| Fatigue load limit C<sub>u</sub> | 105 kN |
| --- | Unit information |
| Mass | 39 kg |
