SKU: C-UCFLX08-108D1-NTN

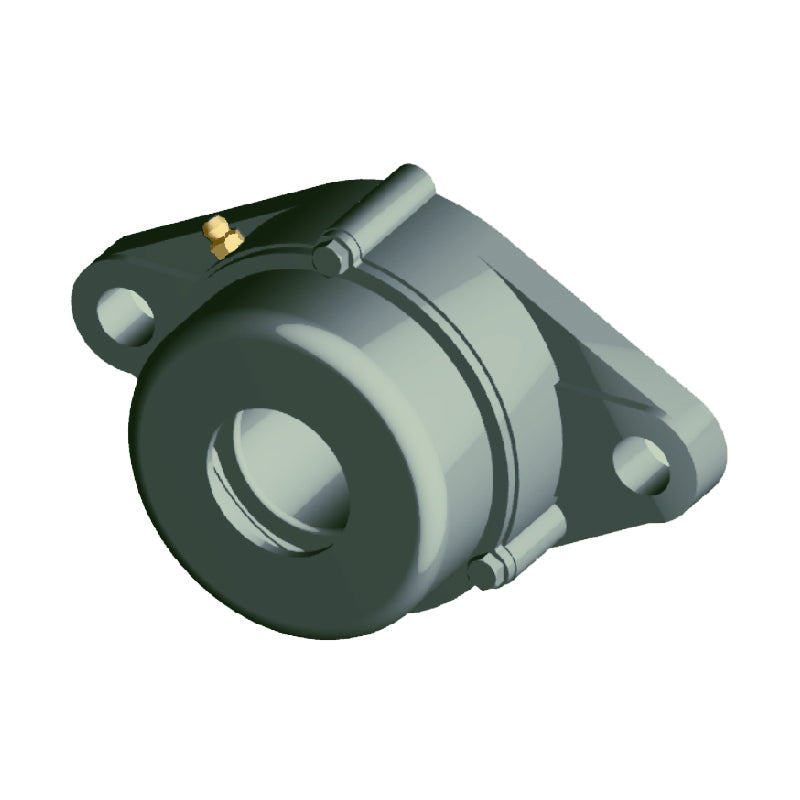

NTN C-UCFLX08-108D1 Imperial Two Bolt Oval Cast Iron Flange Housing with 1-1/2 inch Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
NTN C-UCFLX08-108D1 Imperial Two Bolt Oval Cast Iron Flange Housing with 1-1/2 inch Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
Out of stock
Description
Description
|
UCFLX or MSFT Series Medium Duty 2 Bolt Oval Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted.
The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Style:
- UCFLX
- Bolt Hole Centres:
- 5-53/64 inch
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 1-1/2 inch |
| H | 7-1/16 inch |
| J | 5-53/64 inch |
| A<sub>2</sub> | 55/64 inch |
| A<sub>1</sub> | 5/8 inch |
| A | 1-9/16 inch |
| N | 5/8 inch |
| L | 4-3/8 inch |
| B | 1.937 inch |
| S | 0.748 inch |
| A<sub>5</sub> | 2-3/4 inch |
| L<sub>1</sub> | 4-1/2 inch |
| L<sub>2</sub> | 2-3/16 inch |
| Fixing bolt | 1/2 inch |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 36 kN |
| Static load C<sub>0r</sub> | 20.4 kN |
| Fatigue load limit C<sub>u</sub> | 1.6 kN |
| --- | Unit information |
| Mass | 5.3 lbs |
