SKU: C-UCFS314D1-NTN

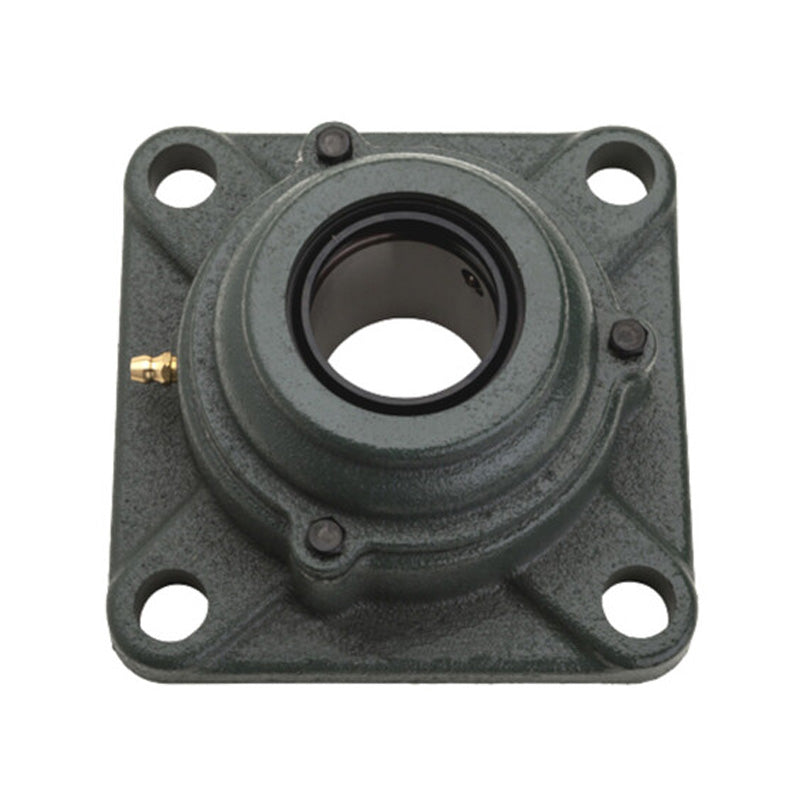

NTN C-UCFS314D1 Metric Four Bolt Square Cast Iron Flange Housing with 70mm Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
NTN C-UCFS314D1 Metric Four Bolt Square Cast Iron Flange Housing with 70mm Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
Regular price
$244.41
ex VAT
Regular price
Sale price
$244.41
ex VAT
In stock
Price Break
3+
$163.72
4+
$154.52
9+
$152.68
19+
$150.84
49+
$149.00
99+
$147.16
499+
$137.96
999+
$136.12
1999+
$134.28
2999+
$132.44
4999+
$128.77
Quantity
Couldn't load pickup availability
Description
Description
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 70mm
- Style:
- UCFS
- Bolt Hole Centres:
- 178mm

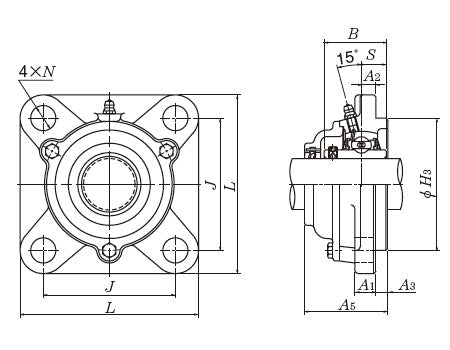

Technical
Technical
| Shaft diameter | 70mm |
|---|---|
| L | 226mm |
| J | 178mm |
| A<sub>2</sub> | 18mm |
| N | 25mm |
| A<sub>3</sub> | 18mm |
| A<sub>1</sub> | 25mm |
| H<sub>3</sub> | 185mm |
| B | 78mm |
| S | 33mm |
| Fixing bolt | M22 |
| A<sub>5</sub> | 106mm |
| Mass | 12 kg |
