SKU: C-UCP208D1-NTN

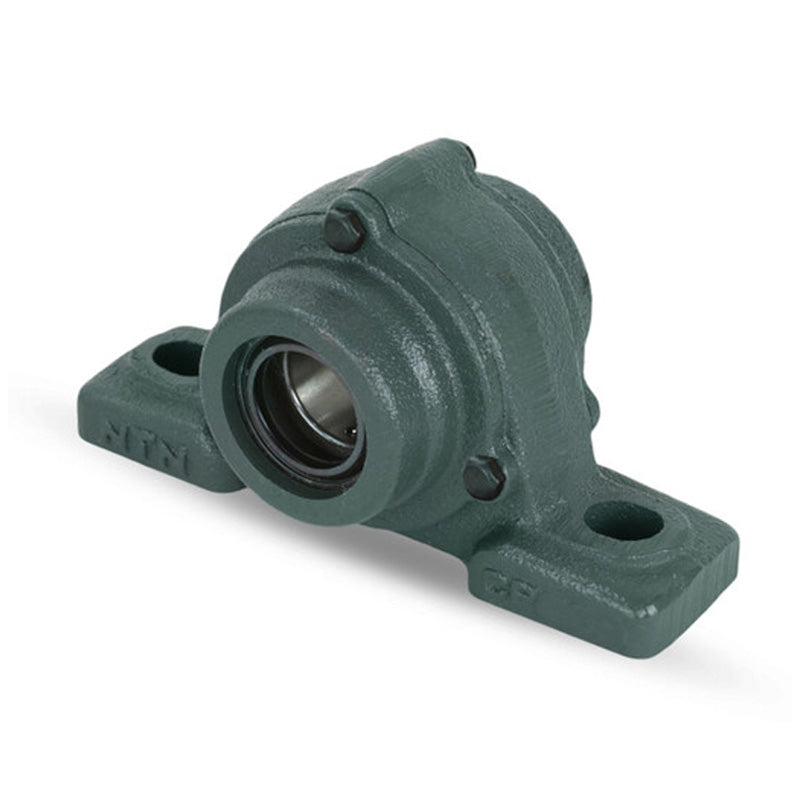

NTN C-UCP208D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 40mm Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days

NTN C-UCP208D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 40mm Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
$88.29 ex VAT
$88.29 ex VAT
Sale Sold out

In stock

Price Break
3+ $65.78
4+ $63.12
9+ $61.79
19+ $59.80
49+ $58.47
99+ $55.15
499+ $46.51
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
NTN - High Quality
Inside Diameter:
40mm
Style:
UCP
Bolt Hole Centres:
137mm
Technical

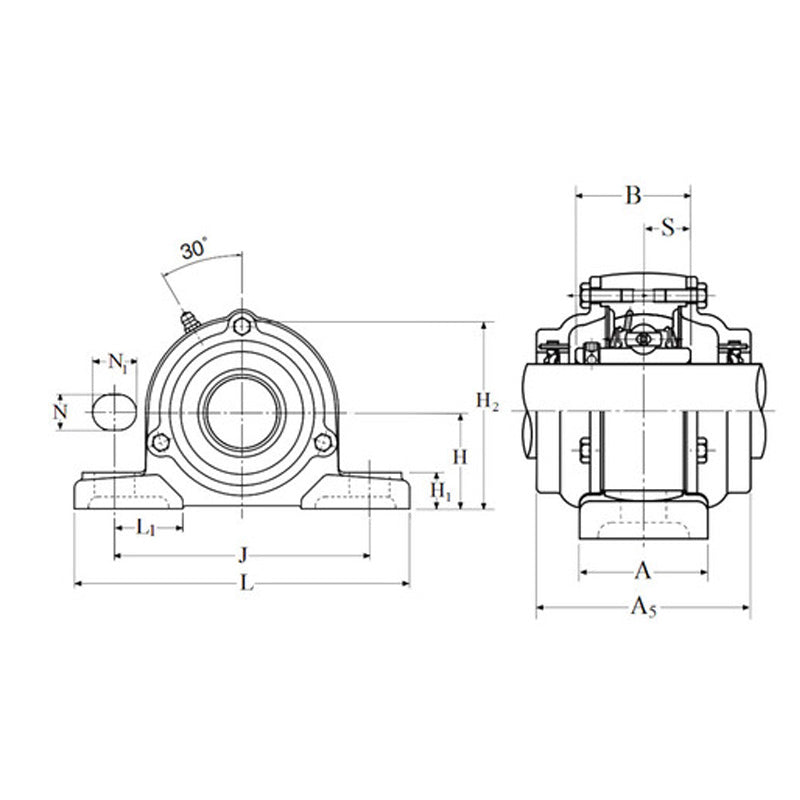

--- Dimensions
Shaft diameter 40mm
H 49.2mm
L 184mm
J 137mm
A 54mm
N 17mm
N<sub>1</sub> 20mm
H<sub>1</sub> 18mm
H<sub>2</sub> 98mm
L<sub>1</sub> 52mm
B 49.2mm
S 19mm
H<sub>3</sub> 105mm
A<sub>5</sub> 90mm
Fixing bolt M14
--- Load rating
Dynamic load C<sub>r</sub> 32.5 kN
Static load C<sub>0r</sub> 17.8 kN
Fatigue load limit C<sub>u</sub> 1.24 kN
--- Unit information
Mass 2.7 kg
