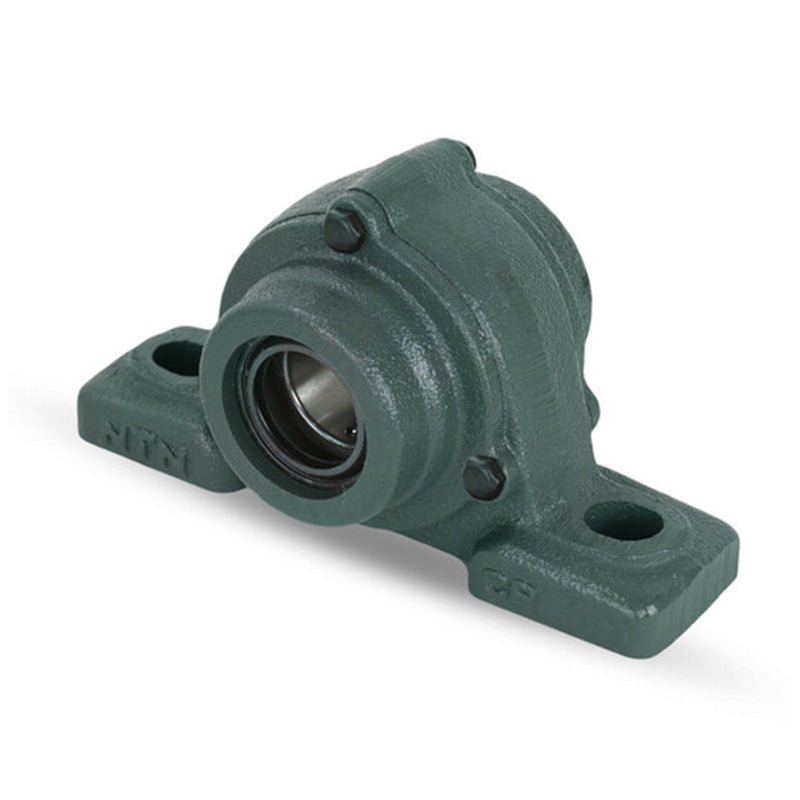

• NTN C-UCP209D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 45mm Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
  • NTN C-UCP209D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 45mm Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
  • NTN
1 3

SKU: C-UCP209D1-NTN

NTN C-UCP209D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 45mm Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days

NTN C-UCP209D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 45mm Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
$77.40 ex VAT
$77.40 ex VAT
Sale Sold out

In stock

Price Break
3+ $51.84
4+ $48.93
9+ $48.35
19+ $47.77
49+ $47.18
99+ $46.60
499+ $43.69
999+ $43.11
1999+ $42.52
2999+ $41.94
4999+ $40.78

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
45mm
Style:
UCP
Bolt Hole Centres:
146mm
Technical

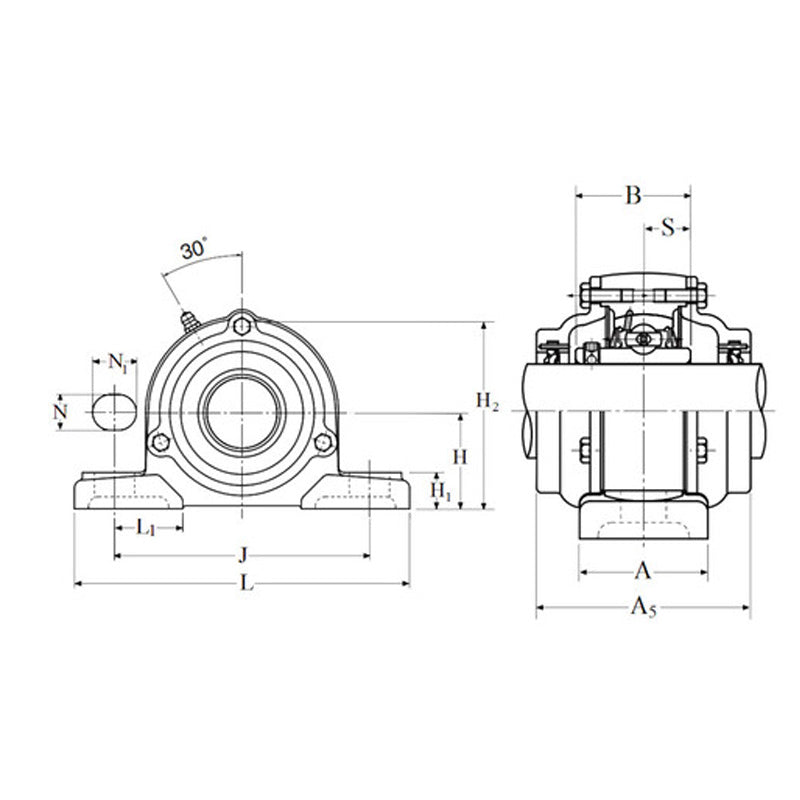

--- Dimensions
Shaft diameter 45mm
H 54mm
L 190mm
J 146mm
A 54mm
N 17mm
N<sub>1</sub> 20mm
H<sub>1</sub> 20mm
H<sub>2</sub> 106mm
L<sub>1</sub> 60mm
B 49.2mm
S 19mm
H<sub>3</sub> 113mm
A<sub>5</sub> 95mm
Fixing bolt M14
--- Load rating
Dynamic load C<sub>r</sub> 36 kN
Static load C<sub>0r</sub> 20.4 kN
Fatigue load limit C<sub>u</sub> 1.6 kN
--- Unit information
Mass 3 kg
