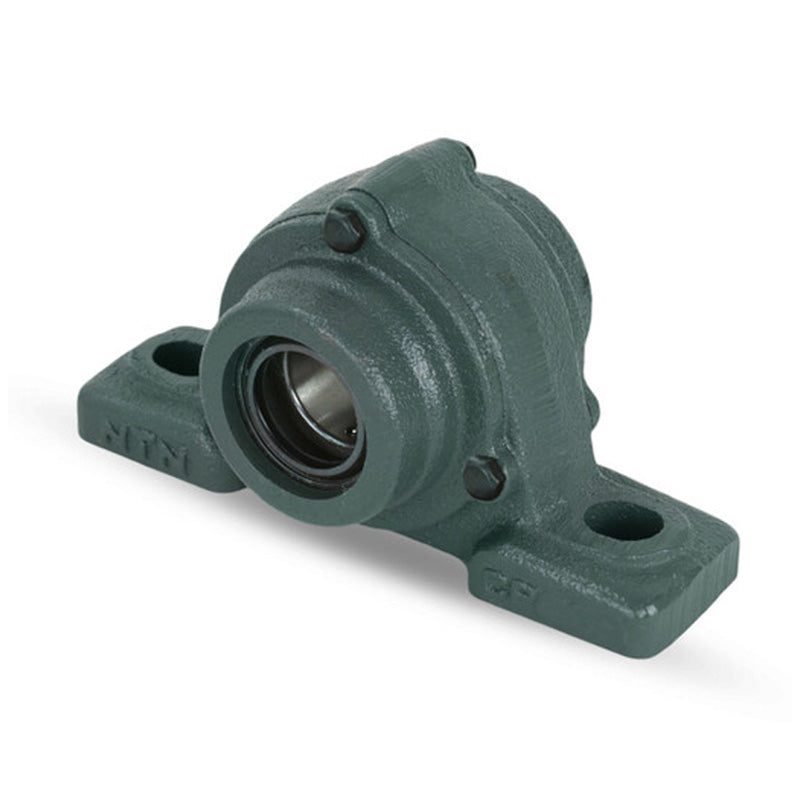

• NTN C-UCP211D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
  • NTN C-UCP211D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
1 2

SKU: C-UCP211D1-NTN

NTN C-UCP211D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days

NTN C-UCP211D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
$147.27 ex VAT
$147.27 ex VAT
Sale Sold out

In stock

Price Break
3+ $109.71
4+ $105.28
9+ $103.06
19+ $99.74
49+ $97.52
99+ $91.98
499+ $77.57
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
NTN - High Quality
Inside Diameter:
55mm
Style:
UCP
Bolt Hole Centres:
171mm
Technical

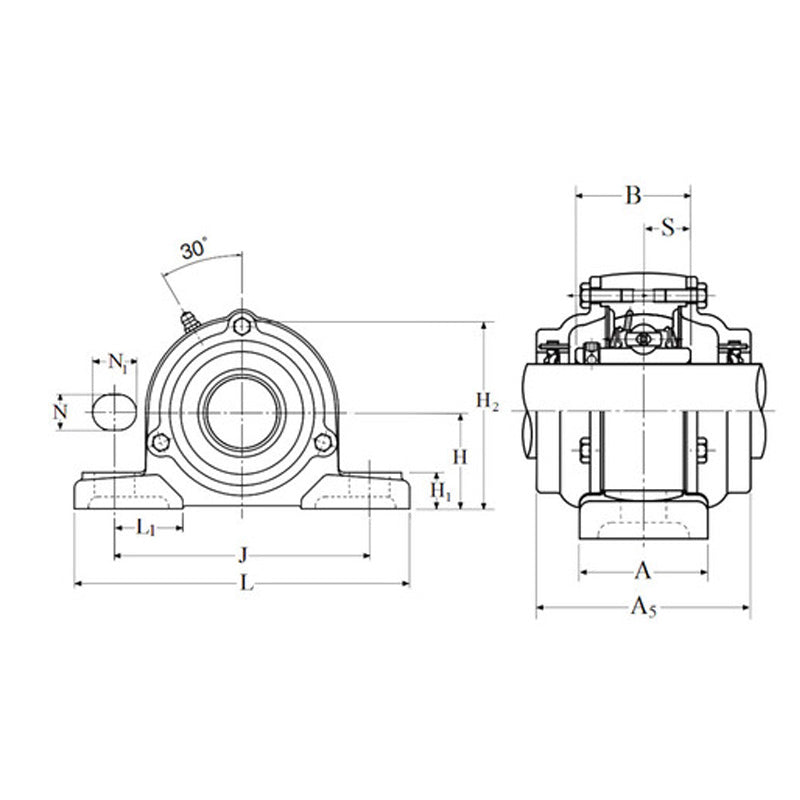

--- Dimensions
Shaft diameter 55mm
H 63.5mm
L 219mm
J 171mm
A 60mm
N 20mm
N<sub>1</sub> 23mm
H<sub>1</sub> 23mm
H<sub>2</sub> 126mm
L<sub>1</sub> 65mm
B 55.6mm
S 22.2mm
H<sub>3</sub> 130mm
A<sub>5</sub> 100mm
Fixing bolt M16
--- Load rating
Dynamic load C<sub>r</sub> 48 kN
Static load C<sub>0r</sub> 29.2 kN
Fatigue load limit C<sub>u</sub> 2.29 kN
--- Unit information
Mass 4.4 kg
