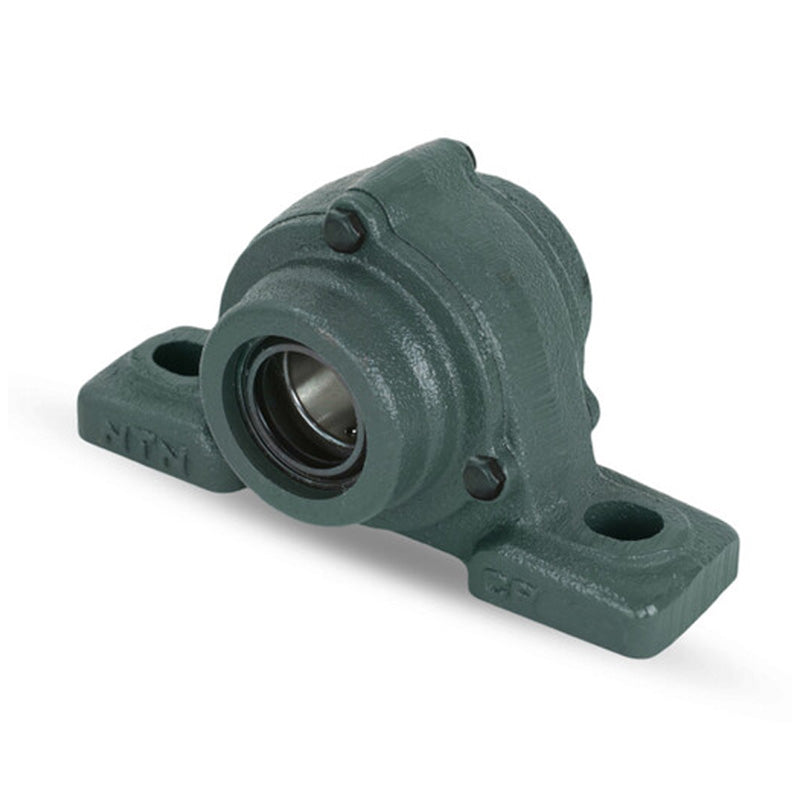

NTN C-UCP213D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 65mm Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days

NTN C-UCP213D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 65mm Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
$147.31 ex VAT
$147.31 ex VAT
Sale Sold out

In stock

Price Break
3+ $98.67
4+ $93.13
9+ $92.02
19+ $90.91
49+ $89.80
99+ $88.70
499+ $83.15
999+ $82.04
1999+ $80.94
2999+ $79.83
4999+ $77.61

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
65mm
Style:
UCP
Bolt Hole Centres:
203mm
Technical

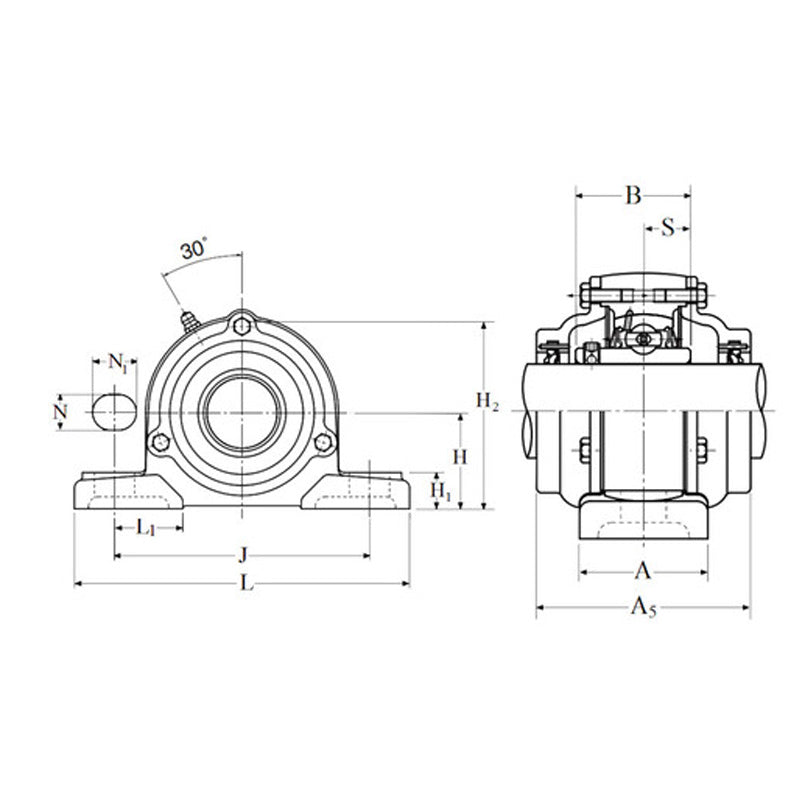

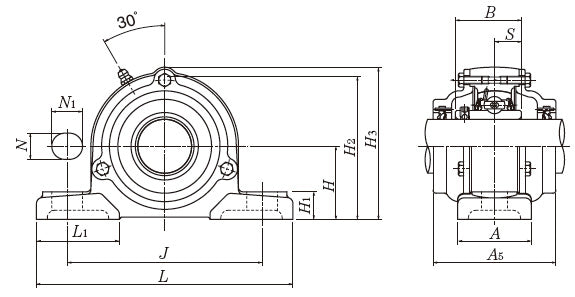

--- Dimensions
Shaft diameter 65mm
H 76.2mm
L 265mm
J 203mm
A 70mm
N 25mm
N<sub>1</sub> 28mm
H<sub>1</sub> 27mm
H<sub>2</sub> 151mm
L<sub>1</sub> 77mm
B 65.1mm
S 25.4mm
H<sub>3</sub> 155mm
A<sub>5</sub> 120mm
Fixing bolt M20
--- Load rating
Dynamic load C<sub>r</sub> 63.5 kN
Static load C<sub>0r</sub> 40 kN
Fatigue load limit C<sub>u</sub> 3.15 kN
--- Unit information
Mass 7.2 kg
