SKU: C-UCT212D1-NTN

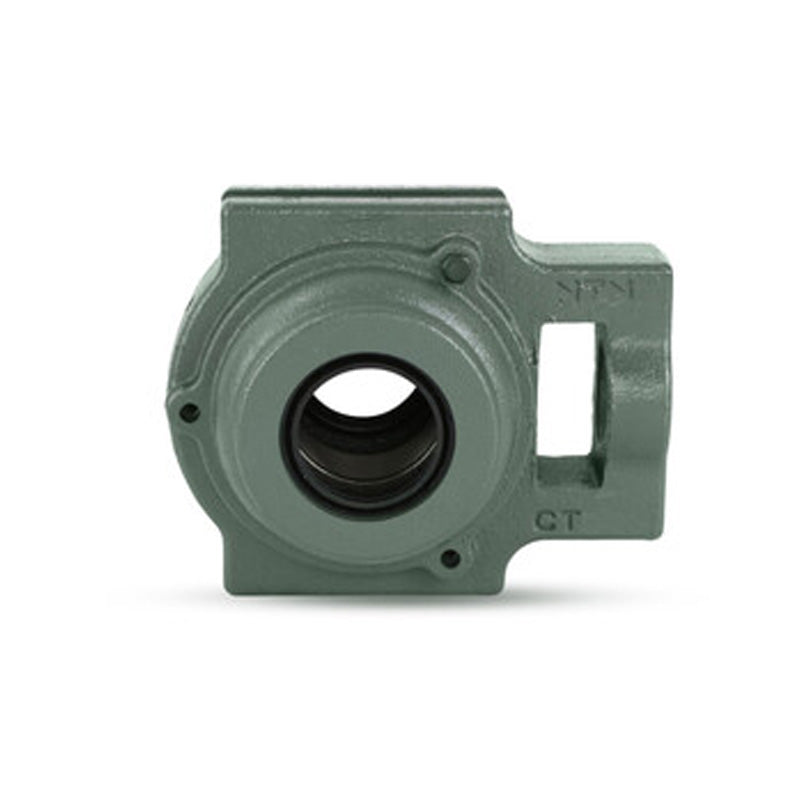

NTN C-UCT212D1 Metric Cast Iron Take Up Unit with 60mm Bore Bearing Unit with Cast Iron Cover - Open Version - Allow 2-3 Days
NTN C-UCT212D1 Metric Cast Iron Take Up Unit with 60mm Bore Bearing Unit with Cast Iron Cover - Open Version - Allow 2-3 Days
Regular price
$206.03
ex VAT
Regular price
Sale price
$206.03
ex VAT
In stock
Price Break
3+
$153.49
4+
$147.29
9+
$144.19
19+
$139.54
49+
$136.44
99+
$128.68
499+
$108.53
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Description
Description
|
UCT or ST Series Take Up Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the slotted take up housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 60mm
- Style:
- UCT
Technical
Technical

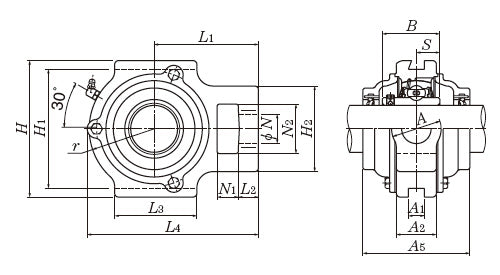

| --- | Dimensions |
|---|---|
| Shaft diameter | 60mm |
| N<sub>1</sub> | 32mm |
| L<sub>2</sub> | 21mm |
| H<sub>2</sub> | 102mm |
| N<sub>2</sub> | 64mm |
| N | 35mm |
| L<sub>3</sub> | 102mm |
| A<sub>1</sub> | 22mm |
| H<sub>1</sub> | 130mm |
| H | 146mm |
| L | 194mm |
| A<sub>2</sub> | 42mm |
| A | 64mm |
| r | 75mm |
| L<sub>1</sub> | 119mm |
| B | 65.1mm |
| S | 25.4mm |
| L<sub>4</sub> | 194mm |
| A<sub>5</sub> | 115mm |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 58 kN |
| Static load C<sub>0r</sub> | 36 kN |
| Fatigue load limit C<sub>u</sub> | 2.83 kN |
| --- | Unit information |
| Mass | 6.1 kg |
