SKU: C-UCT215D1-NTN

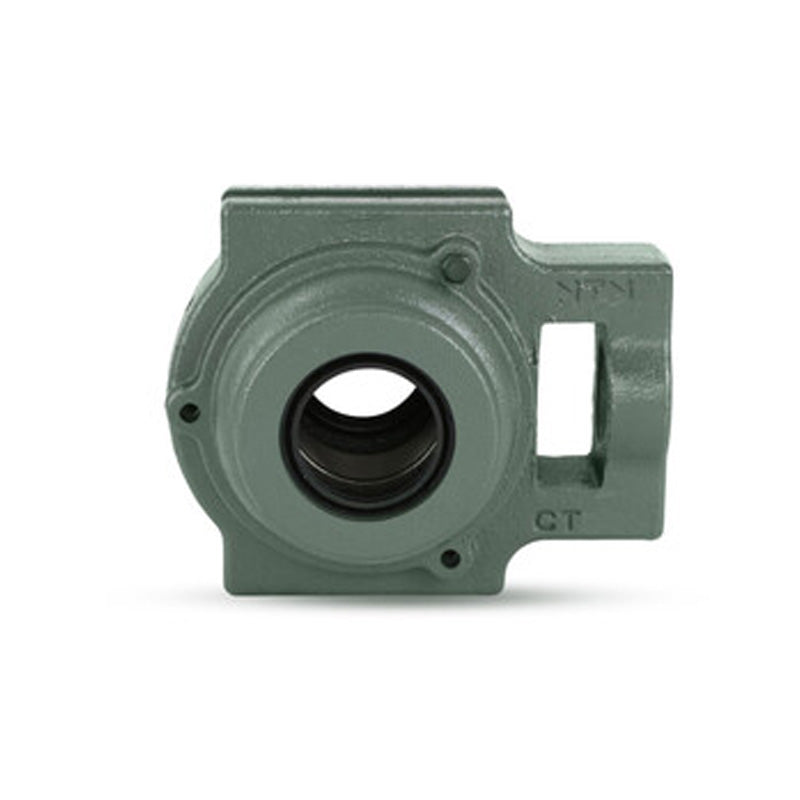

NTN C-UCT215D1 Metric Cast Iron Take Up Unit with 75mm Bore Bearing Unit with Cast Iron Cover - Open Version - Allow 2-3 Days
NTN C-UCT215D1 Metric Cast Iron Take Up Unit with 75mm Bore Bearing Unit with Cast Iron Cover - Open Version - Allow 2-3 Days
Regular price
$383.08
ex VAT
Regular price
Sale price
$383.08
ex VAT
In stock
Price Break
3+
$285.39
4+
$273.86
9+
$268.09
19+
$259.44
49+
$253.68
99+
$239.26
499+
$201.79
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Description
Description
|
UCT or ST Series Take Up Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the slotted take up housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 75mm
- Style:
- UCT
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 75mm |
| N<sub>1</sub> | 32mm |
| L<sub>2</sub> | 23mm |
| H<sub>2</sub> | 111mm |
| N<sub>2</sub> | 70mm |
| N | 41mm |
| L<sub>3</sub> | 121mm |
| A<sub>1</sub> | 26mm |
| H<sub>1</sub> | 151mm |
| H | 167mm |
| L | 232mm |
| A<sub>2</sub> | 48mm |
| A | 70mm |
| r | 92mm |
| L<sub>1</sub> | 140mm |
| B | 77.8mm |
| S | 33.3mm |
| L<sub>4</sub> | 232mm |
| A<sub>5</sub> | 135mm |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 73.5 kN |
| Static load C<sub>0r</sub> | 49.5 kN |
| Fatigue load limit C<sub>u</sub> | 3.8 kN |
| --- | Unit information |
| Mass | 9.8 kg |
