SKU: C-UCT326D1-NTN

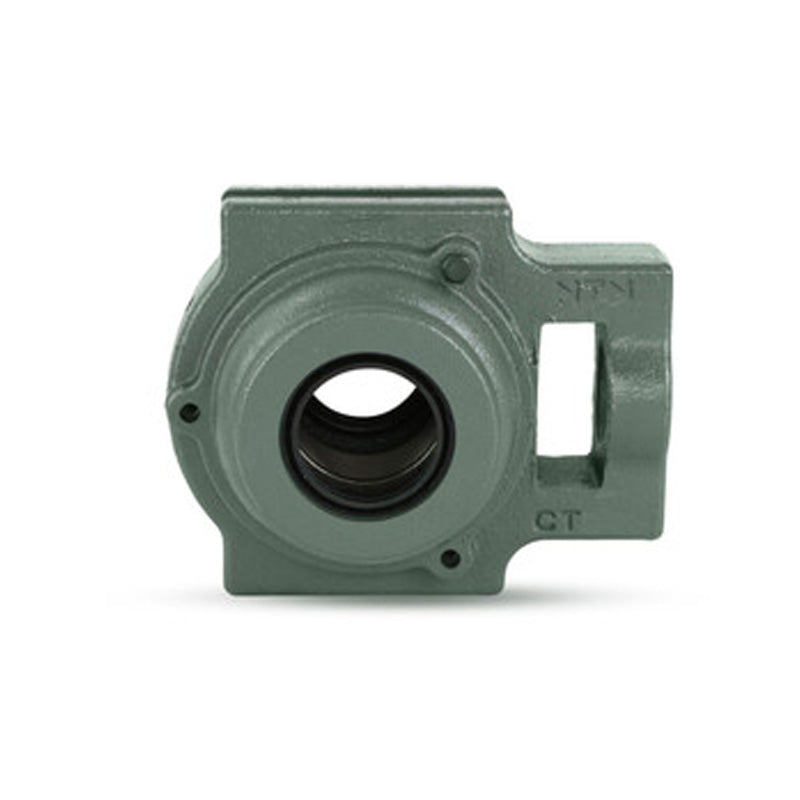

NTN C-UCT326D1 Metric Cast Iron Take Up Unit with 130mm Bore Bearing Unit with Cast Iron Cover - Open Version - Allow 2-3 Days
NTN C-UCT326D1 Metric Cast Iron Take Up Unit with 130mm Bore Bearing Unit with Cast Iron Cover - Open Version - Allow 2-3 Days
Regular price
$2,541.06
ex VAT
Regular price
Sale price
$2,541.06
ex VAT
In stock
Price Break
3+
$1,816.55
4+
$1,720.94
9+
$1,625.34
19+
$1,529.73
49+
$1,491.48
99+
$1,453.24
499+
$1,262.03
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UCT300 Series Heavy Duty Take Up Units: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 130mm
- Style:
- UCT
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 130mm |
| N<sub>1</sub> | 65mm |
| L<sub>2</sub> | 47mm |
| H<sub>2</sub> | 220mm |
| N<sub>2</sub> | 150mm |
| N | 75mm |
| L<sub>3</sub> | 240mm |
| A<sub>1</sub> | 50mm |
| H<sub>1</sub> | 350mm |
| H | 385mm |
| L | 465mm |
| A<sub>2</sub> | 100mm |
| A | 150mm |
| r | 180mm |
| L<sub>1</sub> | 285mm |
| B | 135mm |
| S | 54mm |
| L<sub>4</sub> | 476mm |
| A<sub>5</sub> | 225mm |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 254 kN |
| Static load C<sub>0r</sub> | 214 kN |
| Fatigue load limit C<sub>u</sub> | 11.7 kN |
| --- | Unit information |
| Mass | 84 kg |
