SKU: C-UKT211D1/H2311X-NTN

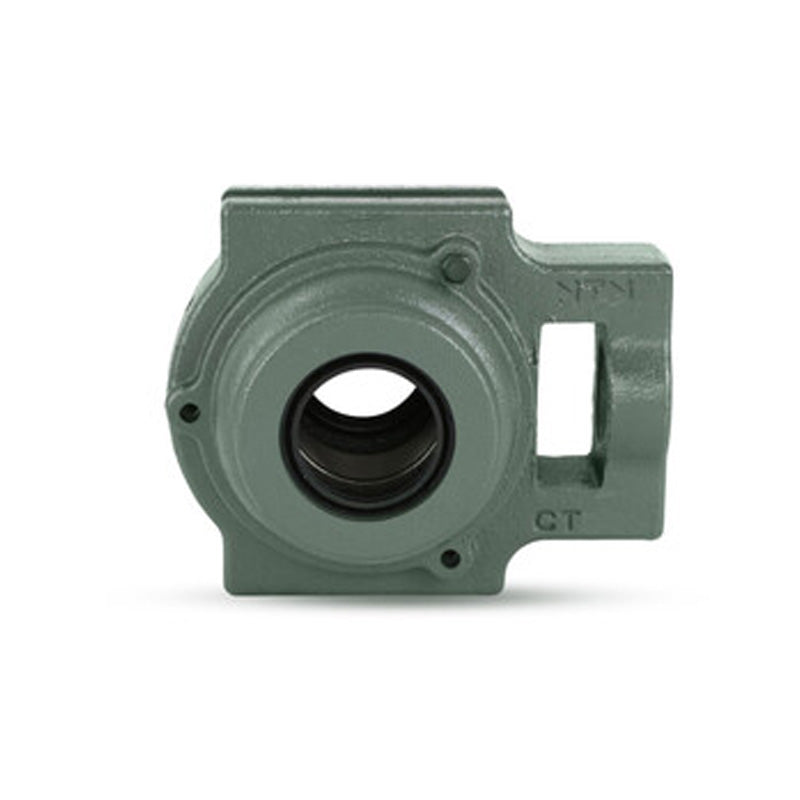

NTN C-UKT211D1/H2311X Metric Cast Iron Take Up Unit with Cast Iron Cover - Open Version - Insert and Adaptor Sleeve Fits 50mm Shaft - Allow 2-3 Days
NTN C-UKT211D1/H2311X Metric Cast Iron Take Up Unit with Cast Iron Cover - Open Version - Insert and Adaptor Sleeve Fits 50mm Shaft - Allow 2-3 Days
Regular price
$206.02
ex VAT
Regular price
Sale price
$206.02
ex VAT
In stock
Price Break
3+
$153.48
4+
$147.28
9+
$144.18
19+
$139.53
49+
$136.43
99+
$128.67
499+
$108.52
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UKT200 Series Normal Duty Take Up Units with Adaptor Sleeve Mounted: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, with adaptor
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 50mm
- Style:
- UKT
Technical
Technical

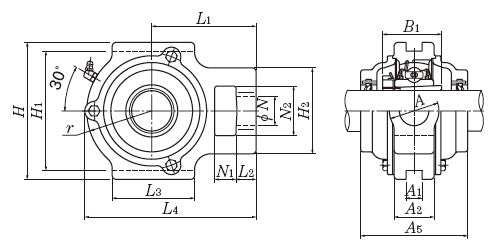

| Shaft diameter | 50mm |
|---|---|
| N<sub>1</sub> | 25mm |
| L<sub>2</sub> | 21mm |
| H<sub>2</sub> | 102mm |
| N<sub>2</sub> | 64mm |
| N | 35mm |
| L<sub>3</sub> | 95mm |
| A<sub>1</sub> | 22mm |
| H<sub>1</sub> | 130mm |
| H | 146mm |
| A<sub>2</sub> | 38mm |
| A | 64mm |
| r | 65mm |
| L<sub>1</sub> | 106mm |
| B<sub>1</sub> | 59mm |
| L<sub>4</sub> | 171.5mm |
| A<sub>5</sub> | 100mm |
| Mass | 5.3 kg |
