SKU: C-UKT310ED1/HE2310X-NTN

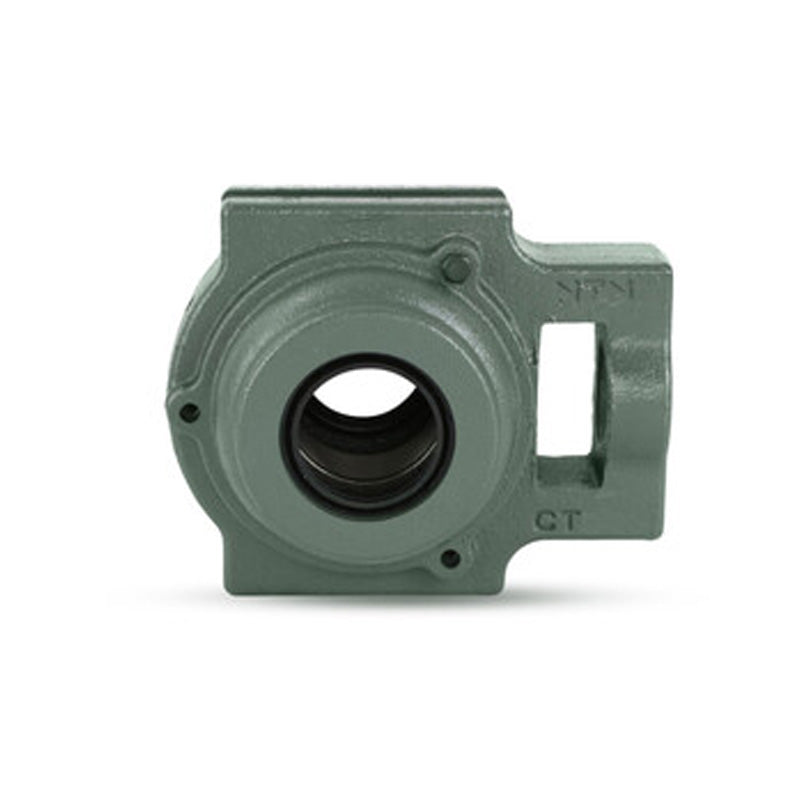

NTN C-UKT310ED1/HE2310X Imperial Cast Iron Take Up Unit with Cast Iron Cover - Open Version - Insert and Adaptor Sleeve Fits 1-3/4 inch Shaft - Allow 2-3 Days
NTN C-UKT310ED1/HE2310X Imperial Cast Iron Take Up Unit with Cast Iron Cover - Open Version - Insert and Adaptor Sleeve Fits 1-3/4 inch Shaft - Allow 2-3 Days
Out of stock
Description
Description
UKT300 Series Heavy Duty Take-Up Unit with Adaptor Sleeve Mounted: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, with adaptor
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 44.45mm = 1.75 (1-3/4) inch
- Style:
- UKT
Technical
Technical
| Shaft diameter | 1-3/4 inch |
|---|---|
| N<sub>1</sub> | 1-1/16 inch |
| L<sub>2</sub> | 7/8 inch |
| H<sub>2</sub> | 3-27/32 inch |
| N<sub>2</sub> | 2-13/32 inch |
| N | 1-15/32 inch |
| L<sub>3</sub> | 4-3/16 inch |
| A<sub>1</sub> | 0.787 inch |
| H<sub>1</sub> | 5-33/64 inch |
| H | 5-15/16 inch |
| A<sub>2</sub> | 1-9/16 inch |
| A | 2-13/32 inch |
| r | 2-29/32 inch |
| L<sub>1</sub> | 4-21/32 inch |
| B<sub>1</sub> | 2.165 inch |
| L<sub>4</sub> | 7-3/4 inch |
| A<sub>5</sub> | 4-23/32 inch |
| Mass | 16 lbs |
