SKU: C10M6SS-CHI

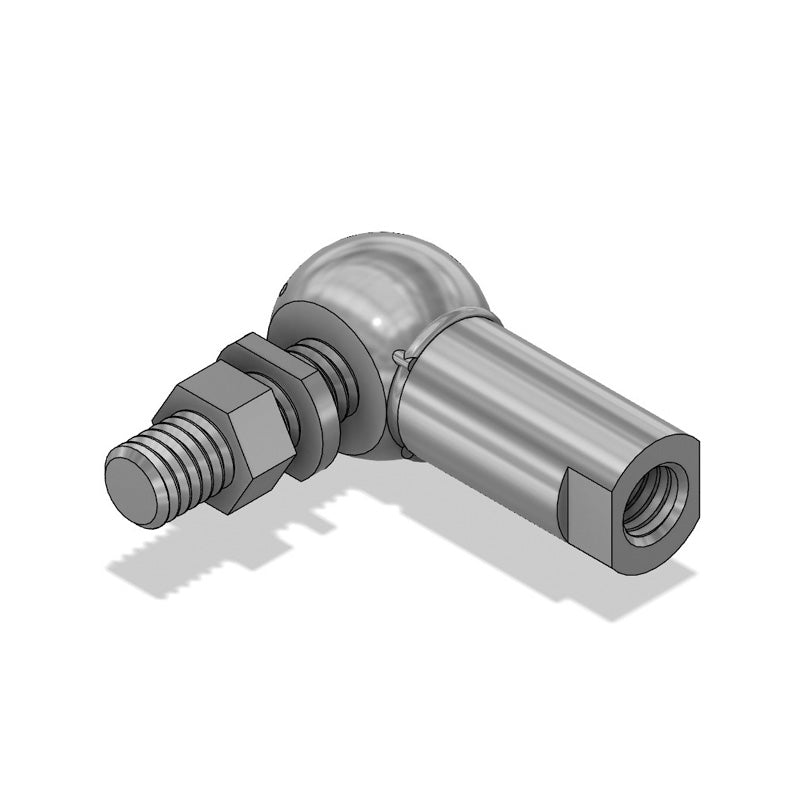

Chiavette C10SS Right Hand Stainless Steel Ball Joint 10mm Ball Diameter M6 Thread - Allow 2-3 Days
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
Chiavette Stainless Steel Ball Joints: Ball joints are mechanical units for the connection of 2 parts which are perpendicular with respect to each other. They enable the transmission of alternating forces through angular and oscillating movements, at a moderate speed. Crafted from high-quality stainless steel, these ball joints are inherently resistant to corrosion, rust, and chemical damage, making them ideal for use in marine environments, chemical processing plants, and other corrosive settings. These ball joints do NOT feature external holes for a safety clip to be mounted and therefore these ball joints do NOT feature an integrated safety clip.
- Brand / Quality:
- Chiavette - High Quality
- Thread Size:
- M6
- Thread Direction:
- Right Hand
- Outside Diameter:
- 10mm
- Style:
- Standard
- Type:
- Without Safety Clip

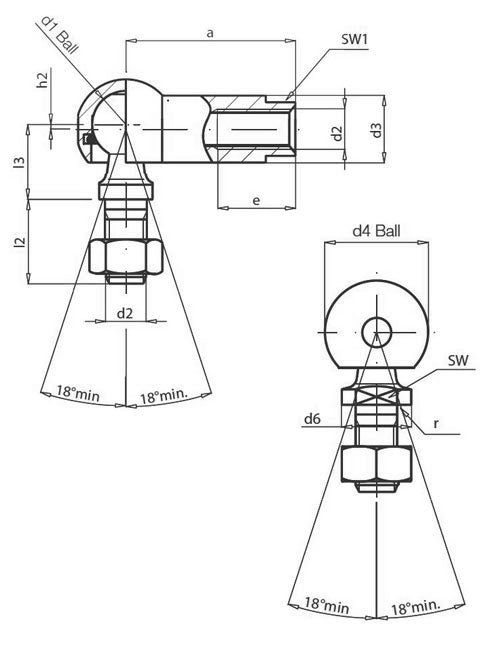

Technical
| --- | Dimensions |
|---|---|
| Thread Direction | Right Hand |
| d1 | 10mm |
| d2 | M6 |
| a | 25mm (+/-0.3) |
| d3 | 10mm (+/-0.5) |
| d4 | 14.8mm (+/-0.5) |
| d6 | 10mm |
| e | 11.5mm |
| h2 | 0.65mm (+/-0.5) |
| l2 | 12.5mm (+/-0.3) |
| l3 | 11mm (+/-0.3) |
| r | 0.3mm |
| sw | 8mm |
| sw1 | 8mm |
| Weight | 0.025 kg |
