SKU: C2206TN9-SKF

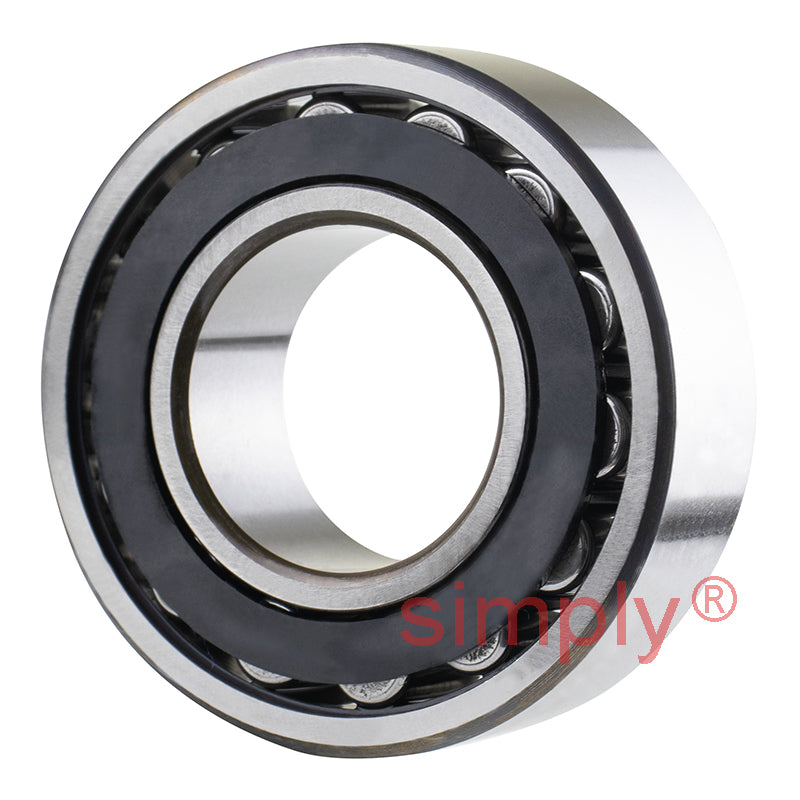

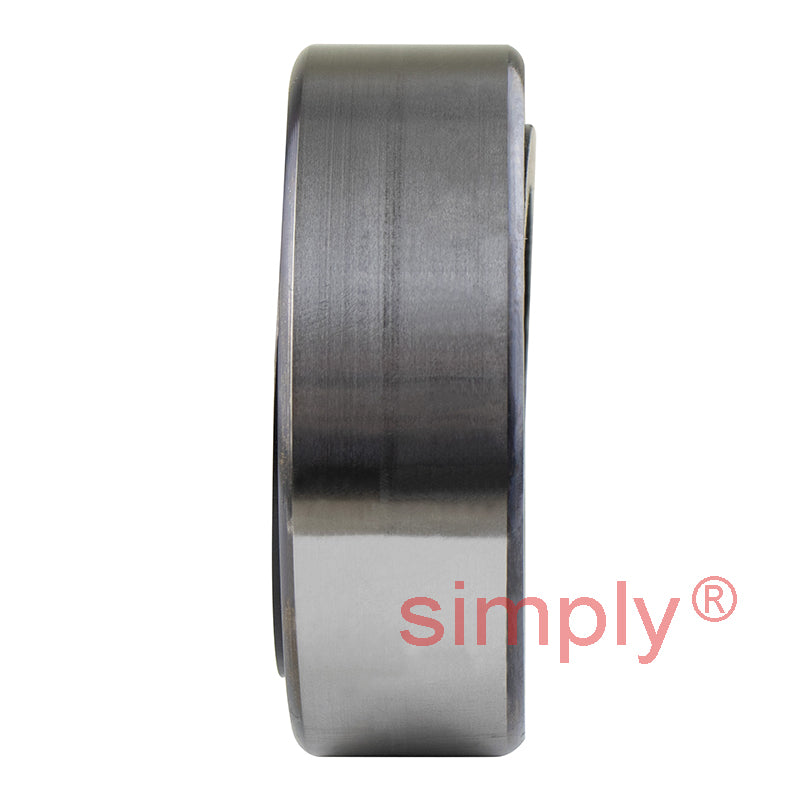

SKF C2206TN9 Carb Toroidal Roller Bearing with Cylindrical Bore 30x62x20mm Allow 7-10 Days
SKF C2206TN9 Carb Toroidal Roller Bearing with Cylindrical Bore 30x62x20mm Allow 7-10 Days
Regular price
$151.60
ex VAT
Regular price
Sale price
$151.60
ex VAT
In stock
Price Break
10+
$101.55
19+
$95.85
29+
$94.71
39+
$93.57
49+
$92.42
74+
$91.28
99+
$85.58
199+
$84.44
249+
$83.30
499+
$82.16
999+
$79.87
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
SKF Carb Toroidal Roller Bearings: These compact design bearings have a single row of barrel shaped (spherical) rollers which run on a common spherical outer and inner raceway. Their design offers many features such as self alignment, insensitivity to misalignment, tolerance to heavy radial and axial loads etc. They are manufactured with in both parallel and tapered bore variants and the ability to deliberately displace the position of the rings to each other permits accurate setting of the radial internal clearance. Benefits: High radial and axial loads, misalignment, taper and parallel bore options |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 62mm
- Width:
- 20mm
- Seals / Shields:
- None
Technical
Technical
| d | 30mm |
|---|---|
| D | 62mm |
| B | 20mm |
| Dynamic load C | 69.5 kN |
| Static load Co | 62 kN |
| Fatigue load limit Pu | 7.2 kN |
| Reference speed | 11000 rpm |
| Limiting speed | 15000 rpm |
| d2 | 37.4mm |
| D1 | 53.1mm |
| r1r2 min | 1mm |
| s1 | 4.5mm |
| da min | 35.6mm |
| da max | 37mm |
| Da min | 51mm |
| Da max | 56.4mm |
| Ca | 0.3mm |
| ra max | 1mm |
| Misalignment factor k1 | 0.101 |
| Operating clearance factor k2 | 0.111 |
| Weight | 0.27 kg |
