SKU: C2209TN9-SKF

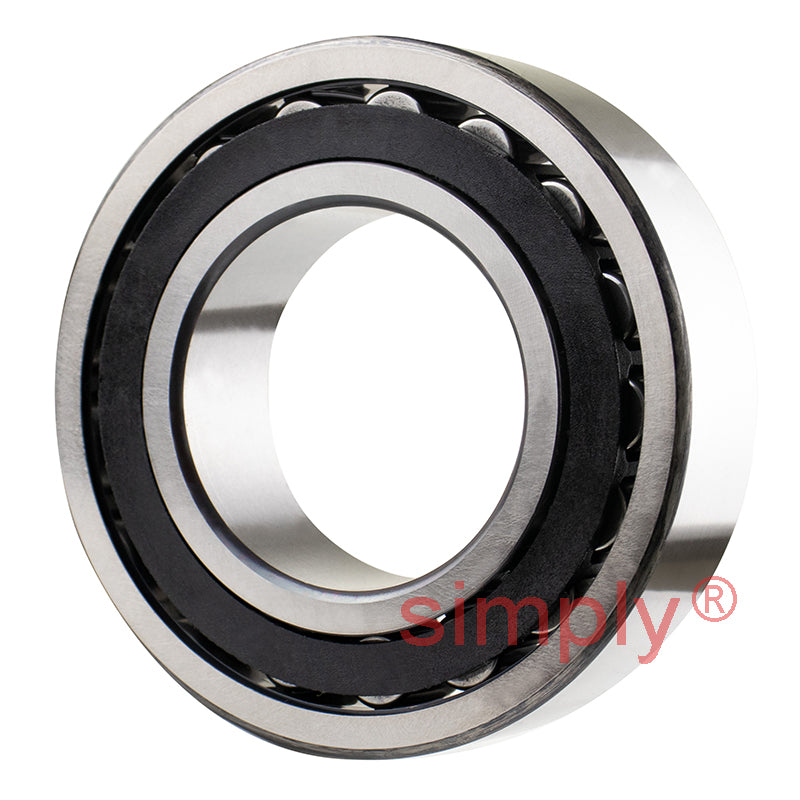

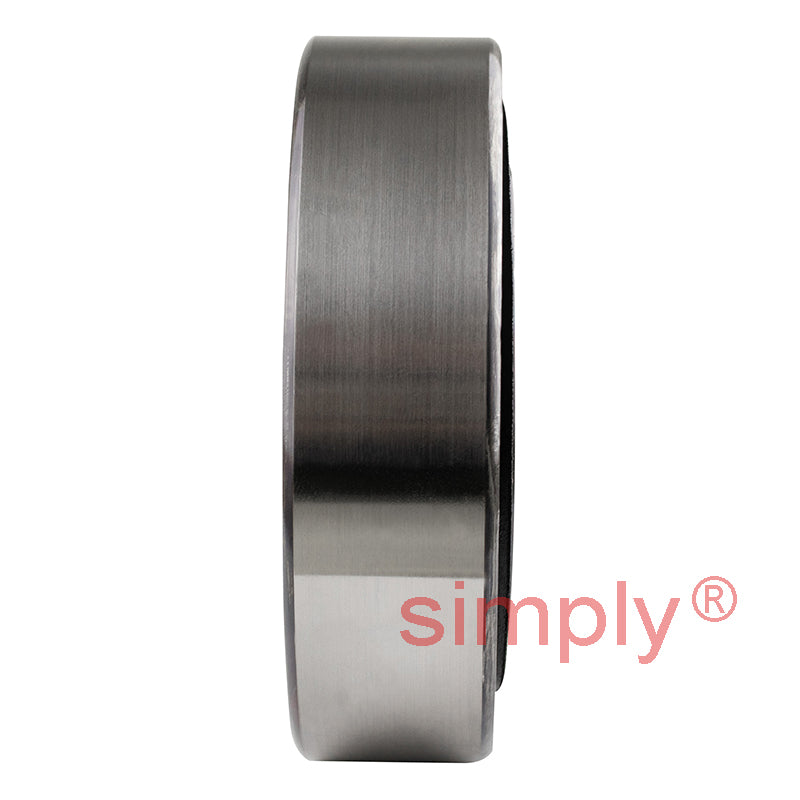

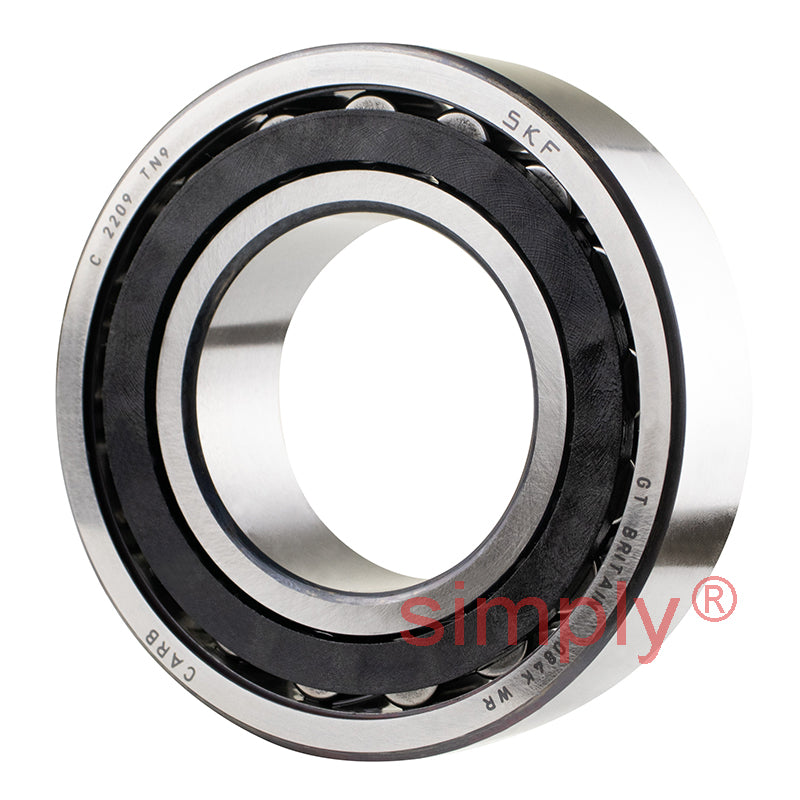

SKF C2209TN9 Carb Toroidal Roller Bearing with Cylindrical Bore 45x85x23mm Allow 7-10 Days

SKF C2209TN9 Carb Toroidal Roller Bearing with Cylindrical Bore 45x85x23mm Allow 7-10 Days
$179.59 ex VAT
$179.59 ex VAT
Sale Sold out

In stock

Price Break
10+ $120.29
19+ $113.54
29+ $112.18
39+ $110.83
49+ $109.48
74+ $108.13
99+ $101.37
199+ $100.02
249+ $98.67
499+ $97.32
999+ $94.61

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Carb Toroidal Roller Bearings: These compact design bearings have a single row of barrel shaped (spherical) rollers which run on a common spherical outer and inner raceway. Their design offers many features such as self alignment, insensitivity to misalignment, tolerance to heavy radial and axial loads etc. They are manufactured with in both parallel and tapered bore variants and the ability to deliberately displace the position of the rings to each other permits accurate setting of the radial internal clearance.
Benefits: High radial and axial loads, misalignment, taper and parallel bore options
Brand / Quality:
SKF - High Quality
Inside Diameter:
45mm
Outside Diameter:
85mm
Width:
23mm
Seals / Shields:
None
Technical
d 45mm
D 85mm
B 23mm
Dynamic load C 93 kN
Static load Co 93 kN
Fatigue load limit Pu 10.8 kN
Reference speed 8000 rpm
Limiting speed 11000 rpm
d2 55.6mm
D1 73.1mm
r1r2 min 1.1mm
s1 7.1mm
da min 52mm
da max 55mm
Da min 71mm
Da max 78mm
Ca 0.3mm
ra max 1mm
Misalignment factor k1 0.095
Operating clearance factor k2 0.128
Weight 0.55 kg
