SKU: C4908V-SKF

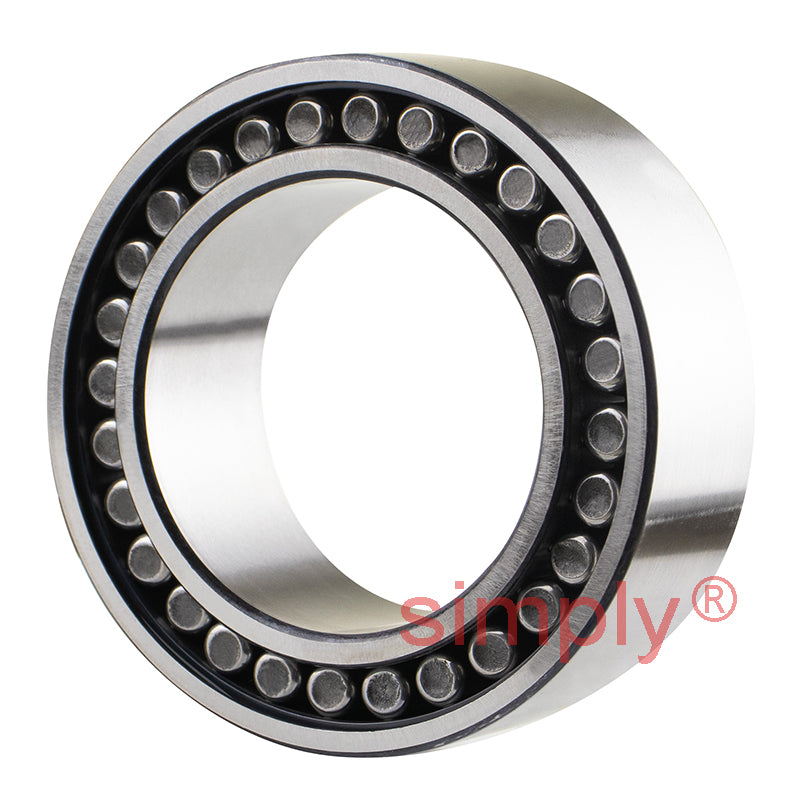

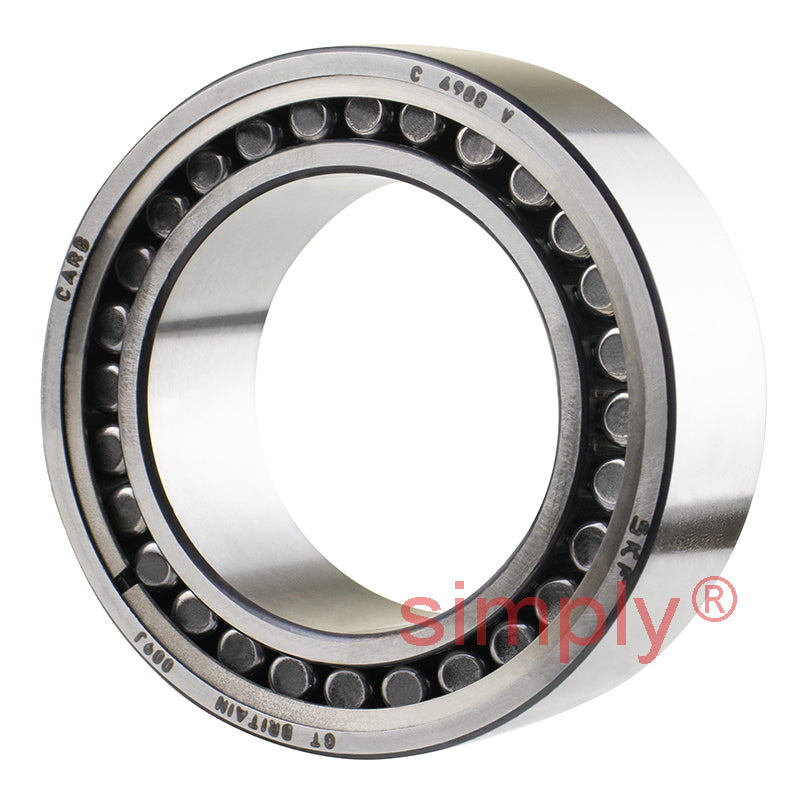

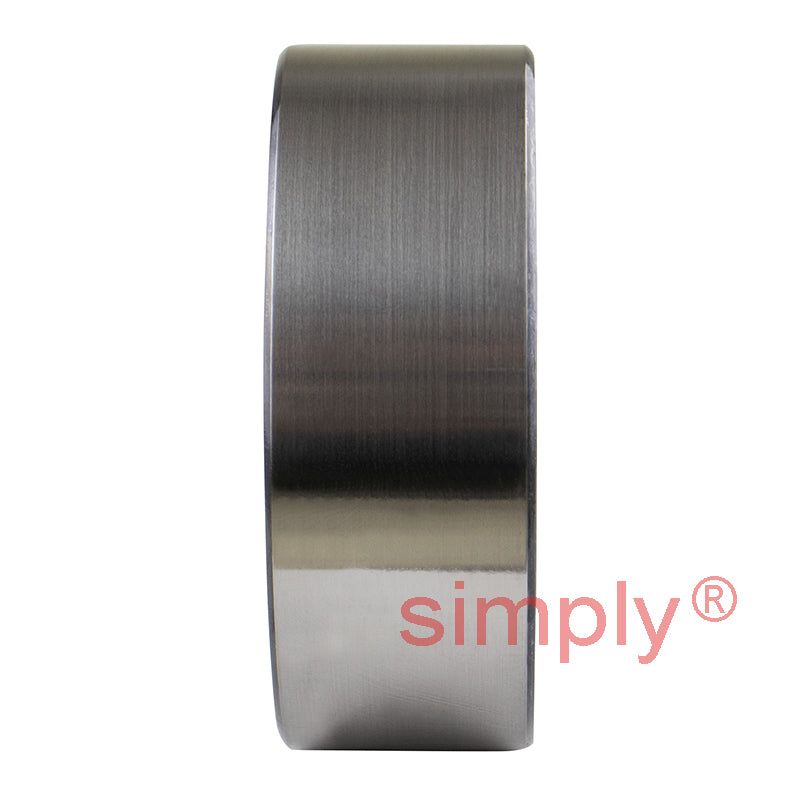

SKF C4908V Carb Toroidal Roller Bearing with Cylindrical Bore 40x62x22mm - Allow 2-3 Days

SKF C4908V Carb Toroidal Roller Bearing with Cylindrical Bore 40x62x22mm - Allow 2-3 Days
$117.78 ex VAT
$117.78 ex VAT
Sale Sold out

In stock

Price Break
10+ $87.74
19+ $84.20
29+ $82.43
39+ $79.77
49+ $77.99
74+ $73.56
99+ $62.04
199+ $0.00
249+ $0.00
499+ $0.00
999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Carb Toroidal Roller Bearings: These compact design bearings have a single row of barrel shaped (spherical) rollers which run on a common spherical outer and inner raceway. Their design offers many features such as self alignment, insensitivity to misalignment, tolerance to heavy radial and axial loads etc. They are manufactured with in both parallel and tapered bore variants and the ability to deliberately displace the position of the rings to each other permits accurate setting of the radial internal clearance.
Benefits: High radial and axial loads, misalignment, taper and parallel bore options
Brand / Quality:
SKF - High Quality
Inside Diameter:
40mm
Outside Diameter:
62mm
Width:
22mm
Seals / Shields:
None
Technical
d 40mm
D 62mm
B 22mm
Dynamic load C 76.5 kN
Static load Co 100 kN
Fatigue load limit Pu 11 kN
Limiting speed 4300 rpm
d2 46.1mm
D1 55.3mm
r1r2 min 0.6mm
s1 4.7mm
s2 1.7mm
da min 43.2mm
da max 52mm
Da max 58.8mm
ra max 0.6mm
Misalignment factor k1 0.099
Operating clearance factor k2 0.114
Weight 0.25 kg
