SKU: CADB09Z

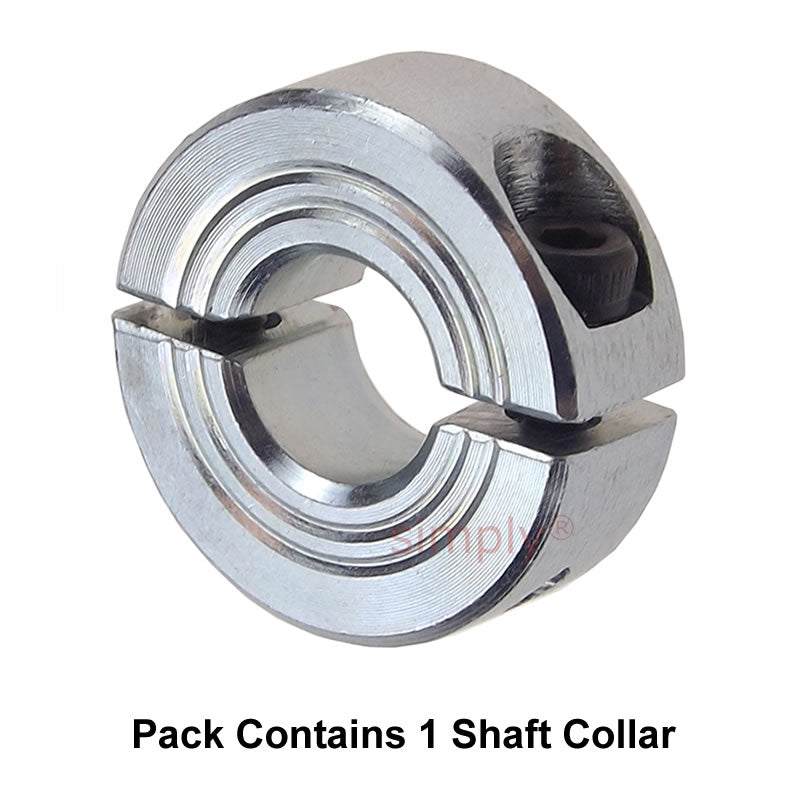

CADB09Z Zinc Plated En8 Steel Double Split Shaft Collar 9x24x9mm with Clamp Bolt
CADB09Z Zinc Plated En8 Steel Double Split Shaft Collar 9x24x9mm with Clamp Bolt
Regular price
$3.80
ex VAT
Regular price
Sale price
$3.80
ex VAT
In stock
Price Break
5+
$2.00
10+
$1.72
20+
$1.57
50+
$1.43
100+
$1.14
500+
$1.00
1000+
$0.86
Quantity
Couldn't load pickup availability
Description
Description
|
Zinc plated EN8 Steel fully split shaft collar with 2 locking screws: Allows assembly / disassembly on and off the shaft without the need to remove other ancillary components. Clamps firmly in place once tightened to the shaft. Ideal for positioning components such as bearings or sprockets onto shafts. Benefits: Galvanized steel, corrosion resistant. Tough EN8 material. |
- Brand / Quality:
- Simply Shaft Collars - Economy Quality
- Inside Diameter:
- 9mm
- Outside Diameter:
- 24mm
- Width:
- 9mm
Technical
Technical
| Bore (A) | 9mm |
|---|---|
| Diameter (B) | 24mm |
| Width (C) | 9mm |
| Clamp Bolt | M3x10 |
