• Major Brand CCNB32SB Hex Head Sealed Crowned Cam Follower with 1 inch Outside Diameter
1 1

SKU: CCNB-32-SB

Major Brand CCNB32SB Hex Head Sealed Crowned Cam Follower with 1 inch Outside Diameter

Major Brand CCNB32SB Hex Head Sealed Crowned Cam Follower with 1 inch Outside Diameter
$57.94 ex VAT
$57.94 ex VAT
Sale Sold out

Equivalent to: CCF-1-SB CS-32-LW CR-1-XBC CRSBC-16

In stock

Price Break
3+ $38.81
4+ $36.63
9+ $36.19
19+ $35.76
29+ $35.32
39+ $34.88
49+ $32.70
59+ $32.27
249+ $31.83
499+ $31.40
999+ $30.52

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Outside Diameter:
25.4mm = 1 inch
Width:
15.88mm = 0.625 (5/8) inch
Pitch:
UNF 7/16-20

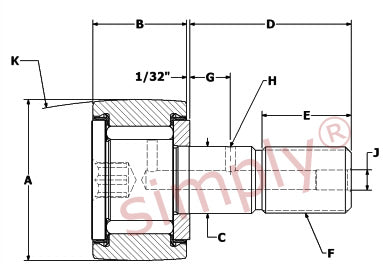

Technical
A 1 inch
B 0.625 inch
C 0.4375 inch
D 1 inch
E 0.5 inch
Thread class 2A F 7/16-20 UNF
G 1/4 inch
H 3/32 inch
J 3/16 inch
Min boss diameter 41/64 inch
Recommended bore 0.4375 inch
Recommended torque 250 lbf-in
Max static capacity 3060 lbs
Basic dynamic rating 2225 lbs
