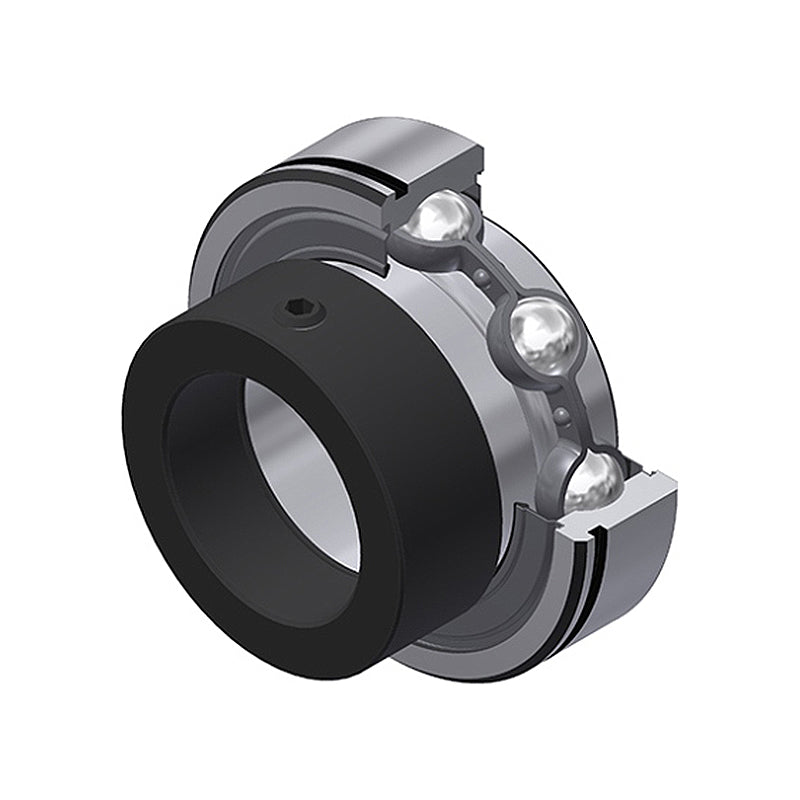

• SNR CES205 Metric Flatback Grooved Parallel Outer Bearing Insert 25mm Bore 52mm Outside Diameter with Eccentric Collar - Allow 2-3 Days
  • SNR
1 2

SKU: CES205-SNR

SNR CES205 Metric Flatback Grooved Parallel Outer Bearing Insert 25mm Bore 52mm Outside Diameter with Eccentric Collar - Allow 2-3 Days

SNR CES205 Metric Flatback Grooved Parallel Outer Bearing Insert 25mm Bore 52mm Outside Diameter with Eccentric Collar - Allow 2-3 Days
$20.13 ex VAT
$20.13 ex VAT
Sale Sold out

Equivalent to: CSA205

In stock

Price Break
3+ $13.48
5+ $12.73
9+ $12.57
19+ $12.42
49+ $12.27
74+ $12.12
99+ $11.36
199+ $11.21
249+ $11.06
499+ $10.91
999+ $10.60

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Thread Size:
M6x1
Inside Diameter:
25mm
Outside Diameter:
52mm
Width:
31mm
Style:
CES
Technical
d 25mm
D 52mm
C 15mm
B 21.5mm
B1 31mm
B2 13.5mm
d1 38.1mm
S 7.5mm
a 2.38mm
b 1.35mm
N1 49.73mm
m 5mm
r min 1mm
G M6x1
Wrench Size 3mm
Set screw torque 5.5 Nm
Min Temp -20 deg C
Max Temp 100 deg C
Dynamic load rating C 14kN
Static load rating C0 7.9kN
Weight 0.2kg
