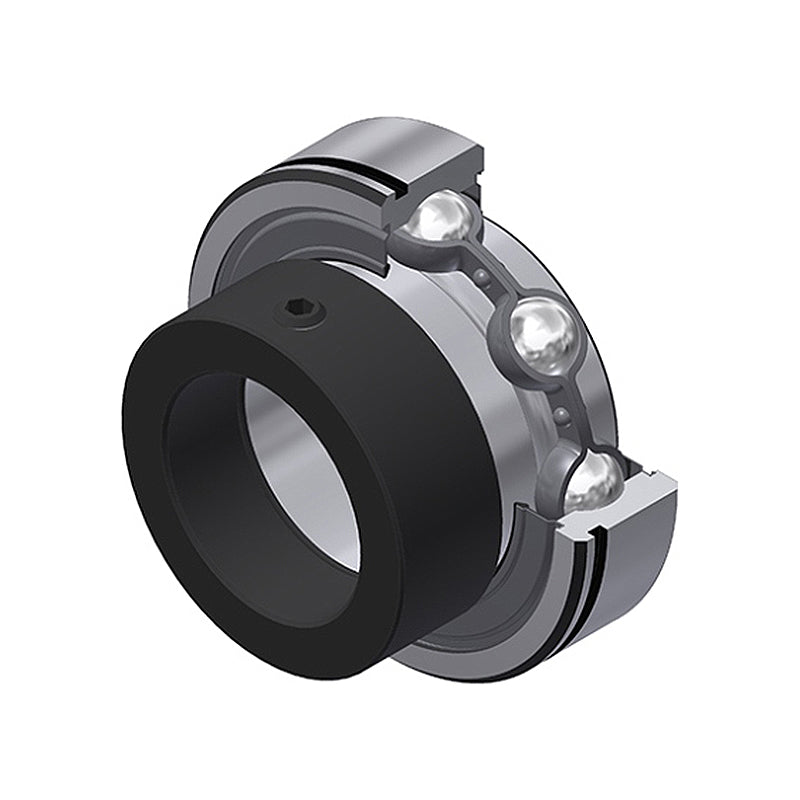

• SNR CES206-20 Imperial Flatback Grooved Parallel Outer Bearing Insert 1-1/4 inch Bore 62mm Outside Diameter with Eccentric Collar - Allow 2-3 Days
  • SNR
1 2

SKU: CES206-20-SNR

SNR CES206-20 Imperial Flatback Grooved Parallel Outer Bearing Insert 1-1/4 inch Bore 62mm Outside Diameter with Eccentric Collar - Allow 2-3 Days

SNR CES206-20 Imperial Flatback Grooved Parallel Outer Bearing Insert 1-1/4 inch Bore 62mm Outside Diameter with Eccentric Collar - Allow 2-3 Days
$26.84 ex VAT
$26.84 ex VAT
Sale Sold out

Equivalent to: CSA206-20

In stock

Price Break
3+ $17.98
5+ $16.97
9+ $16.77
19+ $16.56
49+ $16.36
74+ $16.16
99+ $15.15
199+ $14.95
249+ $14.75
499+ $14.54
999+ $14.14

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Thread Size:
5/16-24UNF
Inside Diameter:
31.75mm = 1.25 (1-1/4) inch
Outside Diameter:
62mm
Width:
35.7mm
Style:
CES
Technical
d 1-1/4 inch
d 31.75mm
D 62mm
C 16mm
B 23.8mm
B1 35.7mm
B2 15.9mm
d1 44.5mm
S 8mm
a 3.18mm
b 1.9mm
N1 59.61mm
m 6mm
r min 1mm
G 5/16-24UNF
Wrench Size 5/32 inch
Set screw torque 8 Nm
Min Temp -20 deg C
Max Temp 100 deg C
Dynamic load rating C 19.5kN
Static load rating C0 11.2kN
Weight 0.3kg
