SKU: CES206-SNR

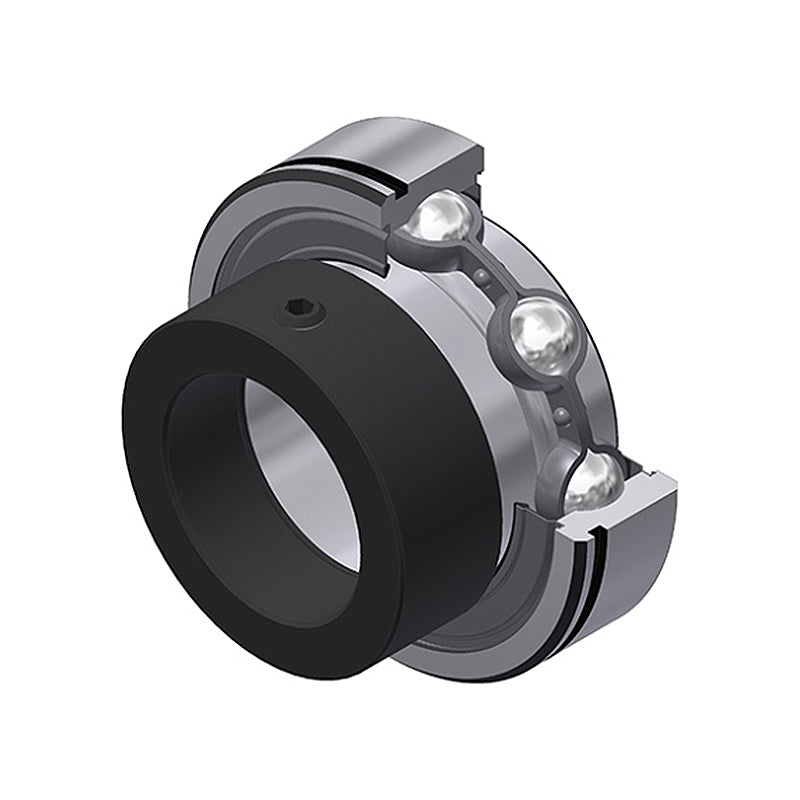

SNR CES206 Metric Flatback Grooved Parallel Outer Bearing Insert 30mm Bore 62mm Outside Diameter with Eccentric Collar

Name: SNR CES206 Metric Flatback Grooved Parallel Outer Bearing Insert 30mm Bore 62mm Outside Diameter with Eccentric Collar
Brand: SNR
SKU: CES206-SNR
Price: 26.84 USD
Availability: InStock

$26.84 ex VAT

Sale Sold out

Equivalent to: CSA206

In stock

Price Break

3+ $17.98

5+ $16.97

9+ $16.77

19+ $16.56

49+ $16.36

74+ $16.16

99+ $15.15

199+ $14.95

249+ $14.75

499+ $14.54

999+ $14.14

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: SNR - High Quality
Thread Size:: M6x1
Inside Diameter:: 30mm
Outside Diameter:: 62mm
Width:: 35.7mm
Style:: CES

Technical

d	30mm
D	62mm
C	16mm
B	23.8mm
B1	35.7mm
B2	15.9mm
d1	44.5mm
S	8mm
a	3.18mm
b	1.9mm
N1	59.61mm
m	6mm
r min	1mm
G	M6x1
Wrench Size	3mm
Set screw torque	5.5 Nm
Min Temp	-20 deg C
Max Temp	100 deg C
Dynamic load rating C	19.5kN
Static load rating C0	11.2kN
Weight	0.3kg
