• SNR CES208-24 Imperial Flatback Grooved Parallel Outer Bearing Insert 1-1/2 inch Bore 80mm Outside Diameter with Eccentric Collar
  • SNR
1 2

SKU: CES208-24-SNR

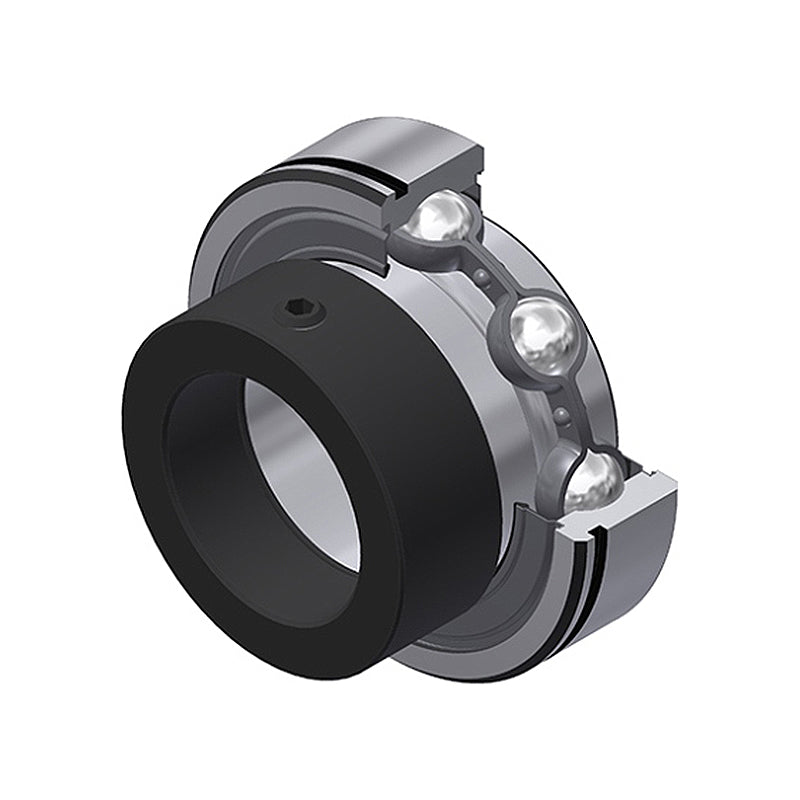

SNR CES208-24 Imperial Flatback Grooved Parallel Outer Bearing Insert 1-1/2 inch Bore 80mm Outside Diameter with Eccentric Collar

SNR CES208-24 Imperial Flatback Grooved Parallel Outer Bearing Insert 1-1/2 inch Bore 80mm Outside Diameter with Eccentric Collar
$32.09 ex VAT
$32.09 ex VAT
Sale Sold out

Equivalent to: CSA208-24

In stock

Price Break
3+ $21.49
5+ $20.29
9+ $20.05
19+ $19.80
49+ $19.56
74+ $19.32
99+ $18.11
199+ $17.87
249+ $17.63
499+ $17.39
999+ $16.91

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Thread Size:
5/16-24UNF
Inside Diameter:
38.1mm = 1.5 (1-1/2) inch
Outside Diameter:
80mm
Width:
43.7mm
Style:
CES
Technical
d 1-1/2 inch
d 38.1mm
D 80mm
C 18mm
B 30.2mm
B1 43.7mm
B2 18.3mm
d1 60.3mm
S 9mm
a 3.18mm
b 1.9mm
N1 76.81mm
m 6.5mm
r min 1.5mm
G 5/16-24UNF
Wrench Size 5/32 inch
Set screw torque 8 Nm
Min Temp -20 deg C
Max Temp 100 deg C
Dynamic load rating C 32.6kN
Static load rating C0 19.9kN
Weight 0.7kg
