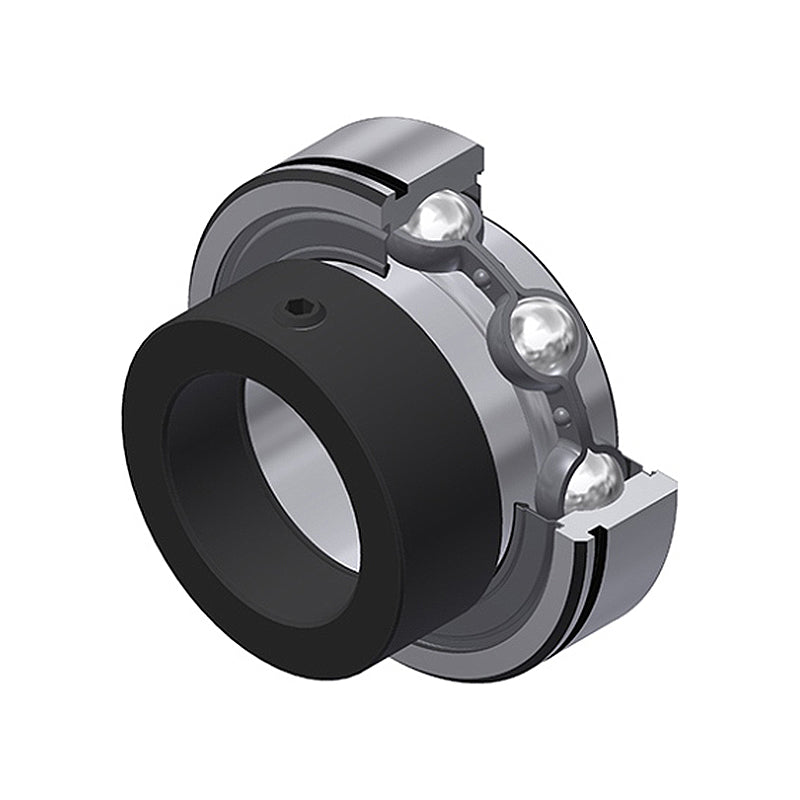

• SNR CES208 Metric Flatback Grooved Parallel Outer Bearing Insert 40mm Bore 80mm Outside Diameter with Eccentric Collar
  • SNR
1 2

SKU: CES208-SNR

SNR CES208 Metric Flatback Grooved Parallel Outer Bearing Insert 40mm Bore 80mm Outside Diameter with Eccentric Collar

SNR CES208 Metric Flatback Grooved Parallel Outer Bearing Insert 40mm Bore 80mm Outside Diameter with Eccentric Collar
$32.09 ex VAT
$32.09 ex VAT
Sale Sold out

Equivalent to: CSA208

In stock

Price Break
3+ $21.49
5+ $20.29
9+ $20.05
19+ $19.80
49+ $19.56
74+ $19.32
99+ $18.11
199+ $17.87
249+ $17.63
499+ $17.39
999+ $16.91

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Thread Size:
M8x1
Inside Diameter:
40mm
Outside Diameter:
80mm
Width:
43.7mm
Style:
CES
Technical
d 40mm
D 80mm
C 18mm
B 30.2mm
B1 43.7mm
B2 18.3mm
d1 60.3mm
S 9mm
a 3.18mm
b 1.9mm
N1 76.81mm
m 6.5mm
r min 1.5mm
G M8x1
Wrench Size 4mm
Set screw torque 11.5 Nm
Min Temp -20 deg C
Max Temp 100 deg C
Dynamic load rating C 32.6kN
Static load rating C0 19.9kN
Weight 0.7kg
