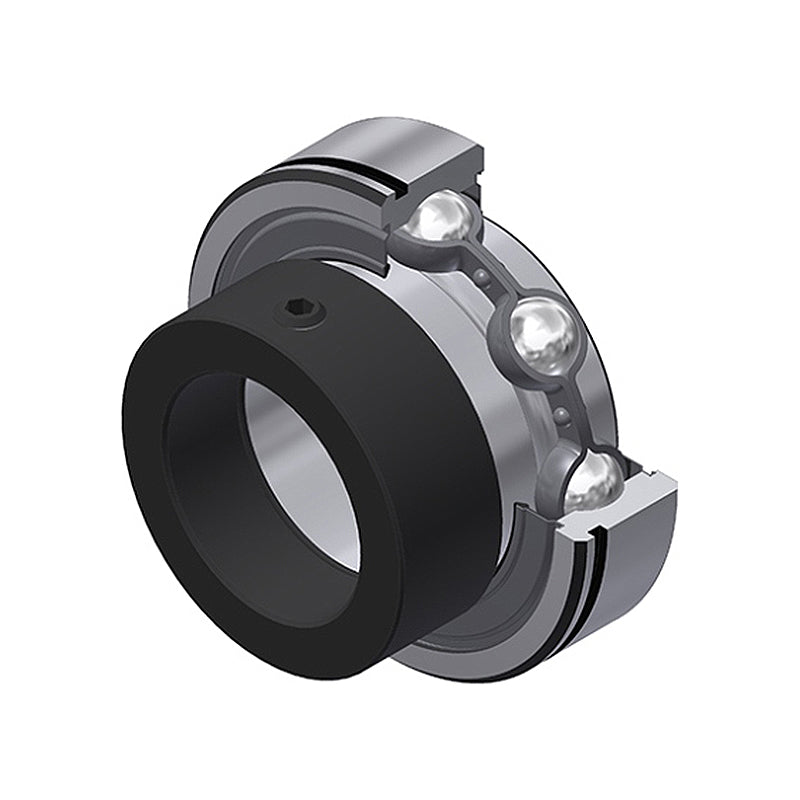

• SNR CES210-30 Imperial Flatback Grooved Parallel Outer Bearing Insert 1-7/8 inch Bore 90mm Outside Diameter with Eccentric Collar
  • SNR
1 2

SKU: CES210-30-SNR

SNR CES210-30 Imperial Flatback Grooved Parallel Outer Bearing Insert 1-7/8 inch Bore 90mm Outside Diameter with Eccentric Collar

SNR CES210-30 Imperial Flatback Grooved Parallel Outer Bearing Insert 1-7/8 inch Bore 90mm Outside Diameter with Eccentric Collar
$41.57 ex VAT
$41.57 ex VAT
Sale Sold out

Equivalent to: CSA210-30

In stock

Price Break
3+ $27.85
5+ $26.28
9+ $25.97
19+ $25.66
49+ $25.34
74+ $25.03
99+ $23.46
199+ $23.15
249+ $22.84
499+ $22.53
999+ $21.90

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Thread Size:
5/16-24UNF
Inside Diameter:
47.625mm = 1.875 (1-7/8) inch
Outside Diameter:
90mm
Width:
43.7mm
Style:
CES
Technical
d 1-7/8 inch
d 47.625mm
D 90mm
C 20mm
B 30.2mm
B1 43.7mm
B2 18.3mm
d1 69.9mm
S 10mm
a 3.7mm
b 2.7mm
N1 86.79mm
m 6.5mm
r min 1.5mm
G 5/16-24UNF
Wrench Size 5/32 inch
Set screw torque 8 Nm
Min Temp -20 deg C
Max Temp 100 deg C
Dynamic load rating C 35.1kN
Static load rating C0 23.2kN
Weight 0.9kg
