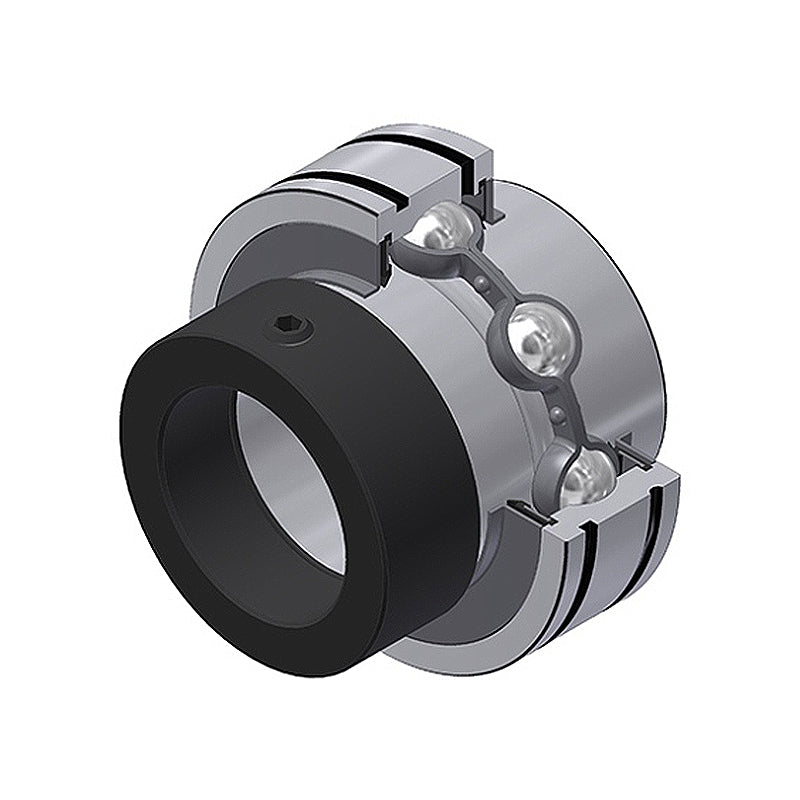

SNR CEX204-12 Imperial Full Width Grooved Parallel Outer Bearing Insert 3/4 inch Bore 47mm Outside Diameter with Eccentric Collar - Allow 2-3 Days

SNR CEX Full Width Parallel Outer Bearing Insert with Eccentric Collar: This bearing insert is engineered for applications needing axial fixation without relubrication, and it is not suitable for standard housings with spherical bearing seats. It includes a cylindrical outer ring with a snap ring groove and features a wide inner ring design. Each steel insert is equipped with a single lip seal and slinger on both sides, and a zinc-coated sheet steel retainer over-molded with NBR. The axially preloaded seal lip and preconnected, zinc-coated sheet steel slinger offer enhanced protection against mechanical impacts and particles. This insert is ideal for medium to high rotation speeds.
Benefits: High-quality brand, high-performance, precision-engineered

Brand / Quality:

SNR - High Quality

Thread Size:

1/4-28UNF

Inside Diameter:

19.05mm = 0.75 (3/4) inch

Outside Diameter:

47mm

Width:

43.7mm

Style:

CEX
