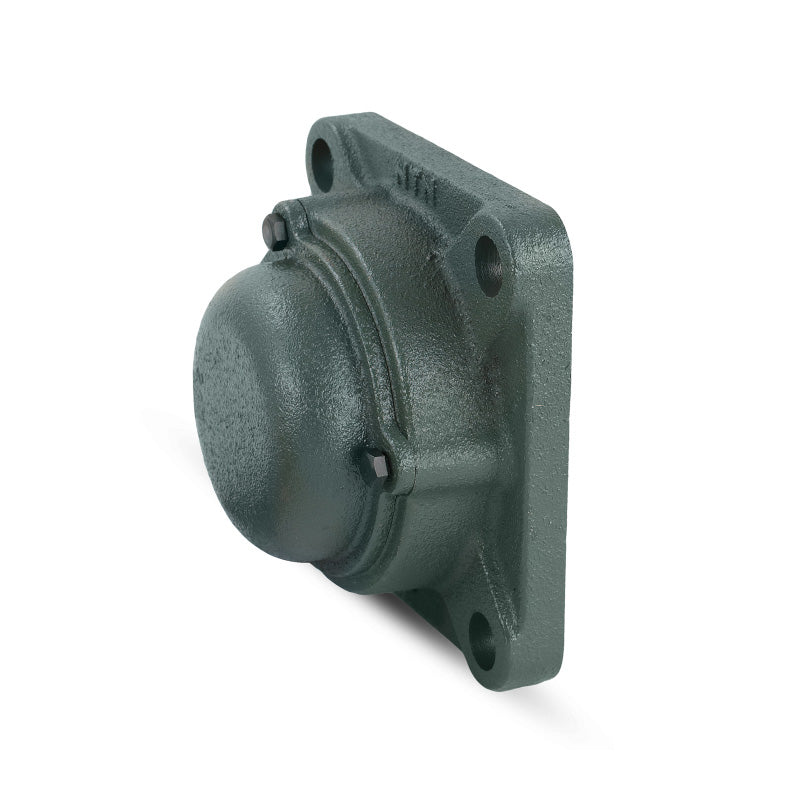

• NTN CM-UCF204D1 Metric Four Bolt Square Cast Iron Flange Housing with 20mm Bore Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days
  • NTN
1 2

SKU: CM-UCF204D1-NTN

NTN CM-UCF204D1 Metric Four Bolt Square Cast Iron Flange Housing with 20mm Bore Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days

NTN CM-UCF204D1 Metric Four Bolt Square Cast Iron Flange Housing with 20mm Bore Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days
$41.04 ex VAT
$41.04 ex VAT
Sale Sold out

In stock

Price Break
3+ $27.49
4+ $25.95
9+ $25.64
19+ $25.33
49+ $25.02
99+ $24.71
499+ $23.17
999+ $22.86
1999+ $22.55
2999+ $22.24
4999+ $21.62

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
20mm
Style:
UCF
Bolt Hole Centres:
64mm
Technical
--- Dimensions
Shaft diameter 20mm
L 86mm
J 64mm
A<sub>2</sub> 15mm
A<sub>1</sub> 11mm
A 25.5mm
N 12mm
B 31mm
S 12.7mm
t<sub>2</sub> 8mm
A<sub>5</sub> 46mm
Fixing bolt M10
--- Load rating
Dynamic load C<sub>r</sub> 14.2 kN
Static load C<sub>0r</sub> 6.65 kN
Fatigue load limit C<sub>u</sub> 0.505 kN
--- Unit information
Mass 0.7 kg
