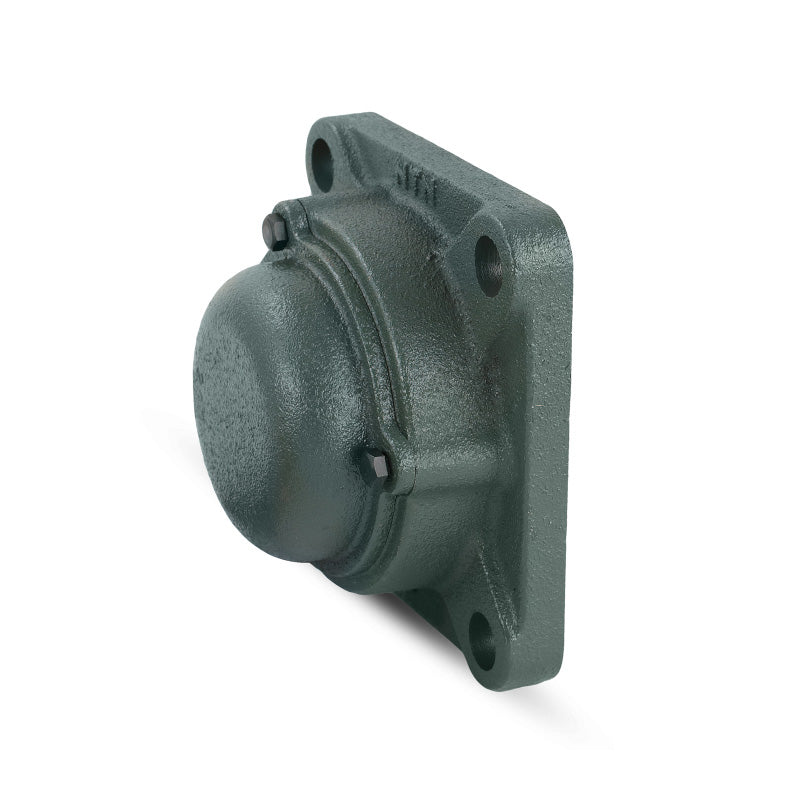

• NTN CM-UCF207D1 Metric Four Bolt Square Cast Iron Flange Housing with 35mm Bore Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days
  • NTN
1 2

SKU: CM-UCF207D1-NTN

NTN CM-UCF207D1 Metric Four Bolt Square Cast Iron Flange Housing with 35mm Bore Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days

NTN CM-UCF207D1 Metric Four Bolt Square Cast Iron Flange Housing with 35mm Bore Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days
$58.04 ex VAT
$58.04 ex VAT
Sale Sold out

In stock

Price Break
3+ $38.88
4+ $36.69
9+ $36.25
19+ $35.82
49+ $35.38
99+ $34.94
499+ $32.76
999+ $32.32
1999+ $31.89
2999+ $31.45
4999+ $30.58

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
35mm
Style:
UCF
Bolt Hole Centres:
92mm
Technical

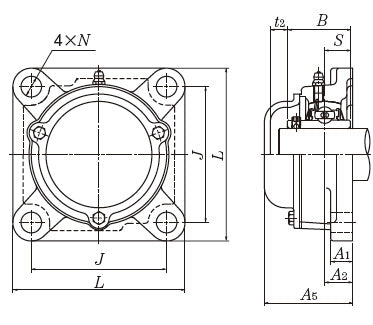

--- Dimensions
Shaft diameter 35mm
L 117mm
J 92mm
A<sub>2</sub> 19mm
A<sub>1</sub> 15mm
A 34mm
N 14mm
B 42.9mm
S 17.5mm
t<sub>2</sub> 10mm
A<sub>5</sub> 59mm
Fixing bolt M12
--- Load rating
Dynamic load C<sub>r</sub> 28.4 kN
Static load C<sub>0r</sub> 15.3 kN
Fatigue load limit C<sub>u</sub> 1.09 kN
--- Unit information
Mass 1.8 kg
