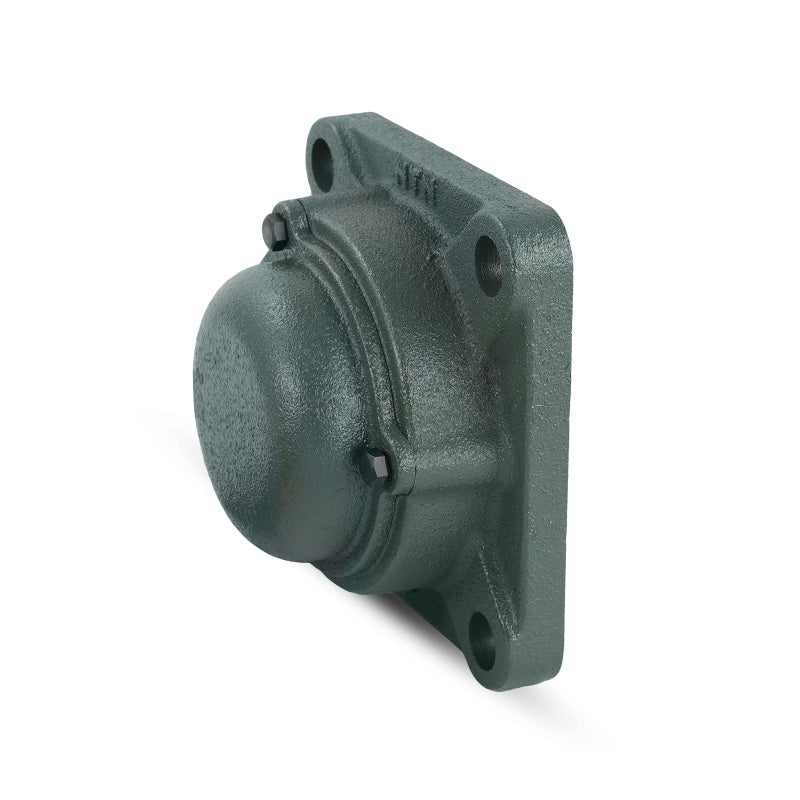

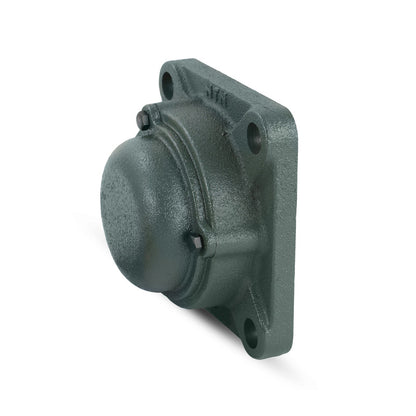

• NTN CM-UCF208D1 Metric Four Bolt Square Cast Iron Flange Housing with 40mm Bore Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days
  • NTN
1 2

SKU: CM-UCF208D1-NTN

NTN CM-UCF208D1 Metric Four Bolt Square Cast Iron Flange Housing with 40mm Bore Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days

NTN CM-UCF208D1 Metric Four Bolt Square Cast Iron Flange Housing with 40mm Bore Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days
$68.60 ex VAT
$68.60 ex VAT
Sale Sold out

In stock

Price Break
3+ $45.95
4+ $43.37
9+ $42.85
19+ $42.34
49+ $41.82
99+ $41.30
499+ $38.72
999+ $38.21
1999+ $37.69
2999+ $37.17
4999+ $36.14

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
NTN - High Quality
Inside Diameter:
40mm
Style:
UCF
Bolt Hole Centres:
102mm
Technical
--- Dimensions
Shaft diameter 40mm
L 130mm
J 102mm
A<sub>2</sub> 21mm
A<sub>1</sub> 15mm
A 36mm
N 16mm
B 49.2mm
S 19mm
t<sub>2</sub> 9mm
A<sub>5</sub> 66mm
Fixing bolt M14
--- Load rating
Dynamic load C<sub>r</sub> 32.5 kN
Static load C<sub>0r</sub> 17.8 kN
Fatigue load limit C<sub>u</sub> 1.24 kN
--- Unit information
Mass 2.2 kg
