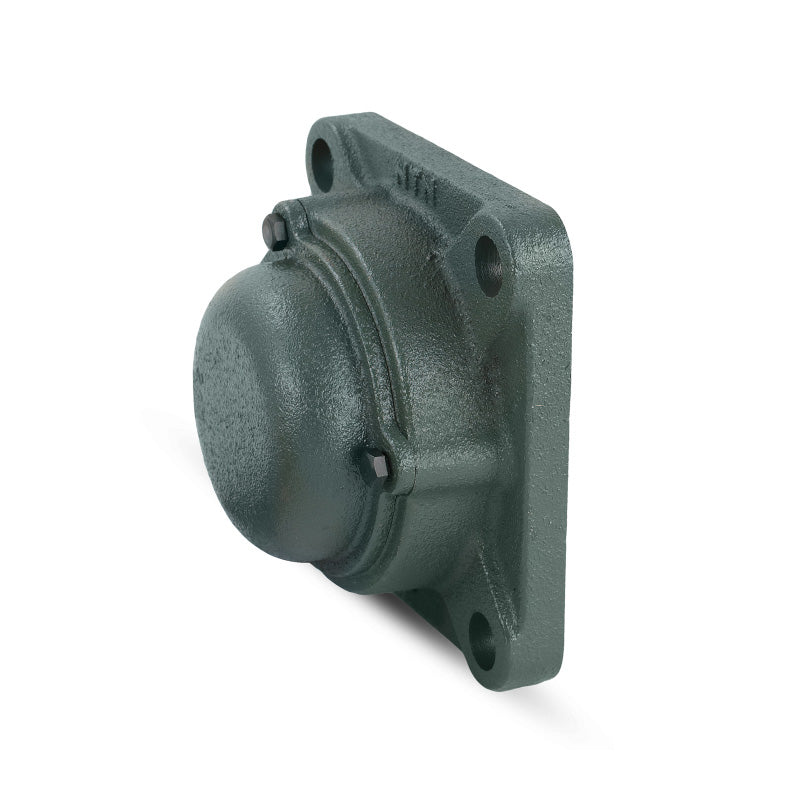

• NTN CM-UCF215D1 Metric Four Bolt Square Cast Iron Flange Housing with 75mm Bore Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days
  • NTN
1 2

SKU: CM-UCF215D1-NTN

NTN CM-UCF215D1 Metric Four Bolt Square Cast Iron Flange Housing with 75mm Bore Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days

NTN CM-UCF215D1 Metric Four Bolt Square Cast Iron Flange Housing with 75mm Bore Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days
$215.46 ex VAT
$215.46 ex VAT
Sale Sold out

In stock

Price Break
3+ $144.32
4+ $136.21
9+ $134.59
19+ $132.97
49+ $131.35
99+ $129.73
499+ $121.62
999+ $120.00
1999+ $118.38
2999+ $116.76
4999+ $113.51

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
75mm
Style:
UCF
Bolt Hole Centres:
159mm
Technical
--- Dimensions
Shaft diameter 75mm
L 200mm
J 159mm
A<sub>2</sub> 34mm
A<sub>1</sub> 22mm
A 56mm
N 19mm
B 77.8mm
S 33.3mm
t<sub>2</sub> 17mm
A<sub>5</sub> 102mm
Fixing bolt M16
--- Load rating
Dynamic load C<sub>r</sub> 73.5 kN
Static load C<sub>0r</sub> 49.5 kN
Fatigue load limit C<sub>u</sub> 3.8 kN
--- Unit information
Mass 7.8 kg
