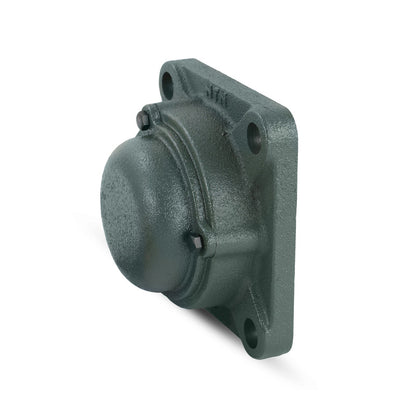

• NTN CM-UCF216D1 Metric Four Bolt Square Cast Iron Flange Housing with 80mm Bore Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days
  • NTN
1 2

SKU: CM-UCF216D1-NTN

NTN CM-UCF216D1 Metric Four Bolt Square Cast Iron Flange Housing with 80mm Bore Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days

NTN CM-UCF216D1 Metric Four Bolt Square Cast Iron Flange Housing with 80mm Bore Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days
$244.41 ex VAT
$244.41 ex VAT
Sale Sold out

In stock

Price Break
3+ $163.72
4+ $154.52
9+ $152.68
19+ $150.84
49+ $149.00
99+ $147.16
499+ $137.96
999+ $136.12
1999+ $134.28
2999+ $132.44
4999+ $128.77

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
NTN - High Quality
Inside Diameter:
80mm
Style:
UCF
Bolt Hole Centres:
165mm
Technical
--- Dimensions
Shaft diameter 80mm
L 208mm
J 165mm
A<sub>2</sub> 34mm
A<sub>1</sub> 22mm
A 58mm
N 23mm
B 82.6mm
S 33.3mm
t<sub>2</sub> 16mm
A<sub>5</sub> 106mm
Fixing bolt M20
--- Load rating
Dynamic load C<sub>r</sub> 80.5 kN
Static load C<sub>0r</sub> 53 kN
Fatigue load limit C<sub>u</sub> 3.95 kN
--- Unit information
Mass 9.2 kg
