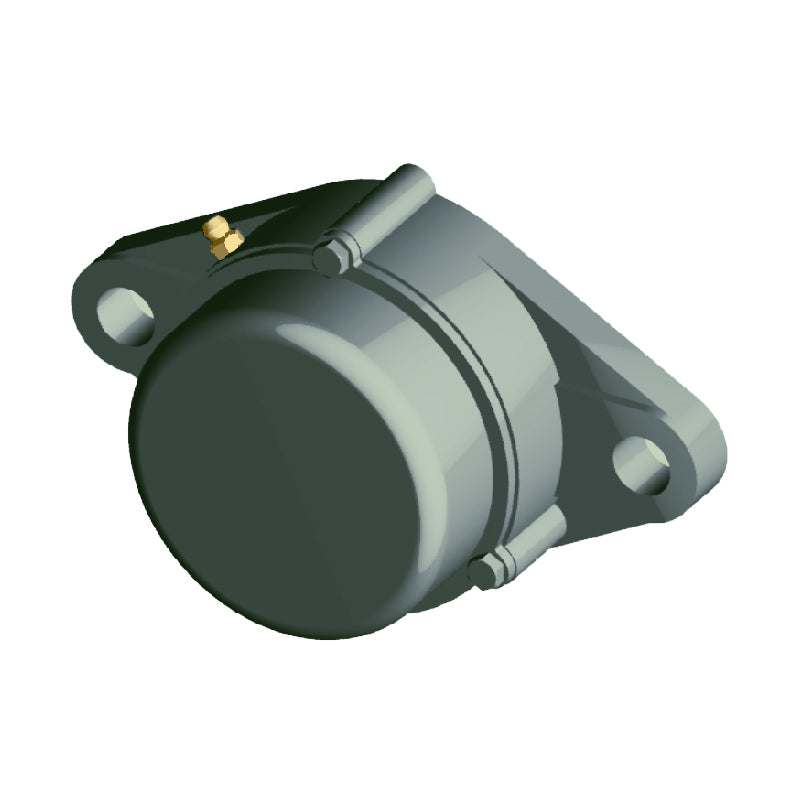

• NTN CM-UCFL205D1 Metric Two Bolt Oval Cast Iron Flange Housing with 25mm Bore Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days
  • NTN
1 2

SKU: CM-UCFL205D1-NTN

NTN CM-UCFL205D1 Metric Two Bolt Oval Cast Iron Flange Housing with 25mm Bore Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days

NTN CM-UCFL205D1 Metric Two Bolt Oval Cast Iron Flange Housing with 25mm Bore Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days
$41.77 ex VAT
$41.77 ex VAT
Sale Sold out

In stock

Price Break
3+ $27.98
4+ $26.41
9+ $26.10
19+ $25.78
49+ $25.47
99+ $25.15
499+ $23.58
999+ $23.27
1999+ $22.95
2999+ $22.64
4999+ $22.01

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
25mm
Style:
UCFL
Bolt Hole Centres:
99mm
Technical

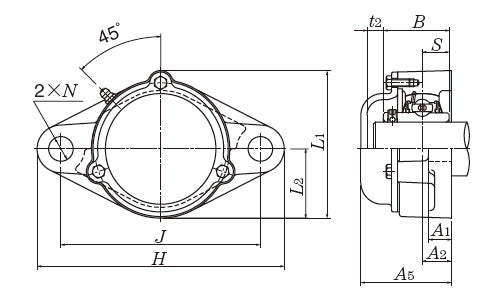

--- Dimensions
Shaft diameter 25mm
H 130mm
J 99mm
A<sub>2</sub> 16mm
A<sub>1</sub> 13mm
A 27mm
N 16mm
L 68mm
B 34.1mm
S 14.3mm
t<sub>2</sub> 11mm
A<sub>5</sub> 51mm
L<sub>1</sub> 74mm
L<sub>2</sub> 34mm
Fixing bolt M14
--- Load rating
Dynamic load C<sub>r</sub> 15.5 kN
Static load C<sub>0r</sub> 7.85 kN
Fatigue load limit C<sub>u</sub> 0.55 kN
--- Unit information
Mass 0.8 kg
