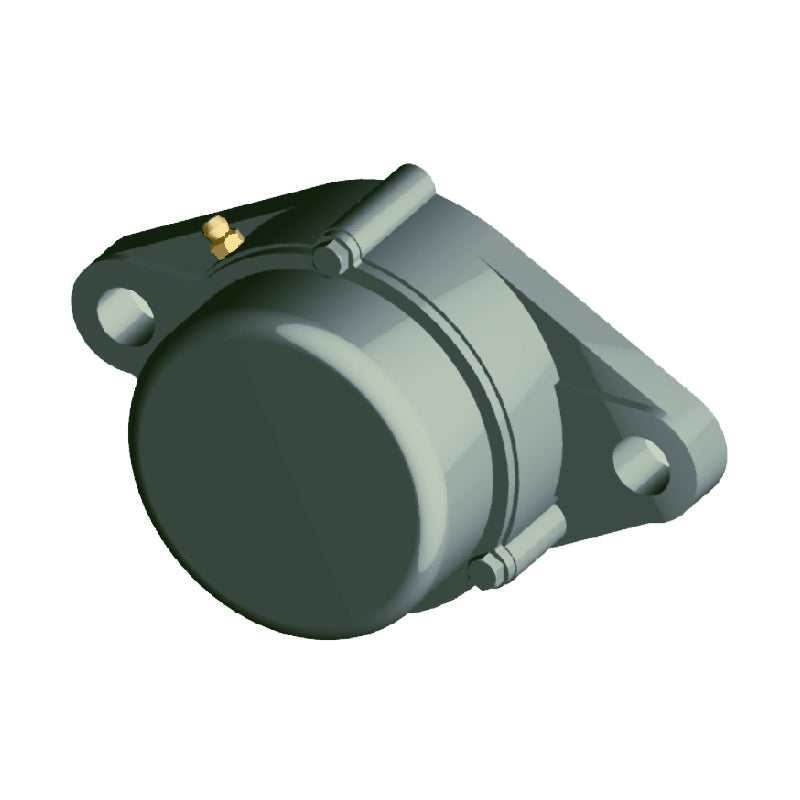

• NTN CM-UCFL207D1 Metric Two Bolt Oval Cast Iron Flange Housing with 35mm Bore Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days
1 1

SKU: CM-UCFL207D1-NTN

NTN CM-UCFL207D1 Metric Two Bolt Oval Cast Iron Flange Housing with 35mm Bore Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days

NTN CM-UCFL207D1 Metric Two Bolt Oval Cast Iron Flange Housing with 35mm Bore Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days
$73.54 ex VAT
$73.54 ex VAT
Sale Sold out

In stock

Price Break
3+ $54.79
4+ $52.57
9+ $51.47
19+ $49.81
49+ $48.70
99+ $45.93
499+ $38.74
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
NTN - High Quality
Inside Diameter:
35mm
Style:
UCFL
Bolt Hole Centres:
130mm
Technical
--- Dimensions
Shaft diameter 35mm
H 161mm
J 130mm
A<sub>2</sub> 19mm
A<sub>1</sub> 15mm
A 34mm
N 16mm
L 90mm
B 42.9mm
S 17.5mm
t<sub>2</sub> 10mm
A<sub>5</sub> 59mm
L<sub>1</sub> 97mm
L<sub>2</sub> 45mm
Fixing bolt M14
--- Load rating
Dynamic load C<sub>r</sub> 28.4 kN
Static load C<sub>0r</sub> 15.3 kN
Fatigue load limit C<sub>u</sub> 1.09 kN
--- Unit information
Mass 1.4 kg
