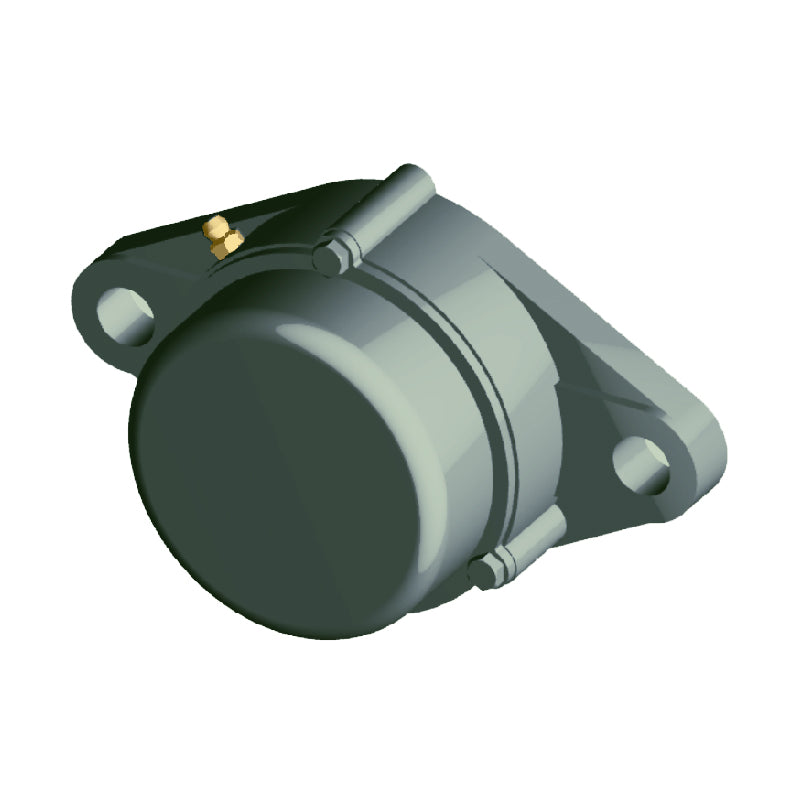

• NTN CM-UCFL211D1 Metric Two Bolt Oval Cast Iron Flange Housing with 55mm Bore Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days
1 1

SKU: CM-UCFL211D1-NTN

NTN CM-UCFL211D1 Metric Two Bolt Oval Cast Iron Flange Housing with 55mm Bore Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days

NTN CM-UCFL211D1 Metric Two Bolt Oval Cast Iron Flange Housing with 55mm Bore Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days
$132.52 ex VAT
$132.52 ex VAT
Sale Sold out

In stock

Price Break
3+ $98.72
4+ $94.73
9+ $92.74
19+ $89.75
49+ $87.75
99+ $82.77
499+ $69.80
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
NTN - High Quality
Inside Diameter:
55mm
Style:
UCFL
Bolt Hole Centres:
184mm
Technical
--- Dimensions
Shaft diameter 55mm
H 224mm
J 184mm
A<sub>2</sub> 25mm
A<sub>1</sub> 18mm
A 43mm
N 19mm
L 130mm
B 55.6mm
S 22.2mm
t<sub>2</sub> 11mm
A<sub>5</sub> 75mm
L<sub>1</sub> 133mm
L<sub>2</sub> 65mm
Fixing bolt M16
--- Load rating
Dynamic load C<sub>r</sub> 48 kN
Static load C<sub>0r</sub> 29.2 kN
Fatigue load limit C<sub>u</sub> 2.29 kN
--- Unit information
Mass 3.4 kg
