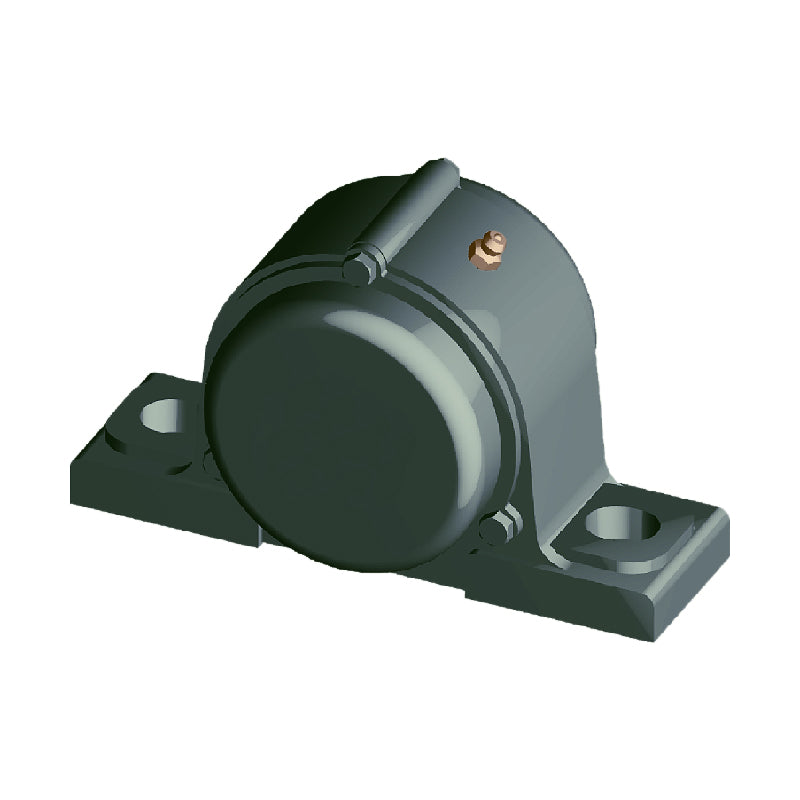

• NTN CM-UCP206D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 30mm Bore Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days
  • NTN
1 2

SKU: CM-UCP206D1-NTN

NTN CM-UCP206D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 30mm Bore Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days

NTN CM-UCP206D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 30mm Bore Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days
$58.04 ex VAT
$58.04 ex VAT
Sale Sold out

In stock

Price Break
3+ $38.88
4+ $36.69
9+ $36.25
19+ $35.82
49+ $35.38
99+ $34.94
499+ $32.76
999+ $32.32
1999+ $31.89
2999+ $31.45
4999+ $30.58

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
30mm
Style:
UCP
Bolt Hole Centres:
121mm
Technical

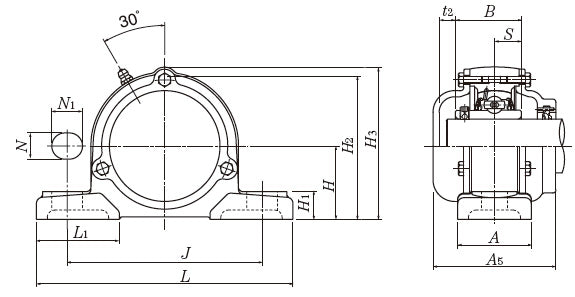

--- Dimensions
Shaft diameter 30mm
H 42.9mm
L 165mm
J 121mm
A 48mm
N 17mm
N<sub>1</sub> 20mm
H<sub>1</sub> 17mm
H<sub>2</sub> 83mm
L<sub>1</sub> 54mm
B 38.1mm
S 15.9mm
t<sub>2</sub> 11mm
H<sub>3</sub> 88mm
A<sub>5</sub> 75mm
Fixing bolt M14
--- Load rating
Dynamic load C<sub>r</sub> 21.6 kN
Static load C<sub>0r</sub> 11.3 kN
Fatigue load limit C<sub>u</sub> 0.795 kN
--- Unit information
Mass 1.7 kg
