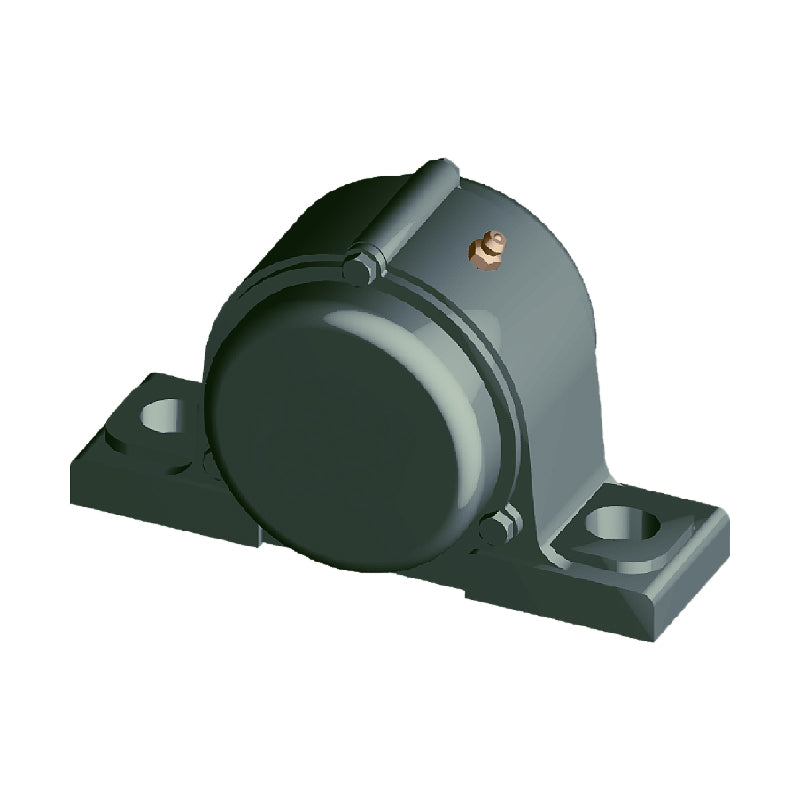

• NTN CM-UCP208D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 40mm Bore Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days
1 1

SKU: CM-UCP208D1-NTN

NTN CM-UCP208D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 40mm Bore Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days

NTN CM-UCP208D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 40mm Bore Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days
$102.99 ex VAT
$102.99 ex VAT
Sale Sold out

In stock

Price Break
3+ $76.73
4+ $73.63
9+ $72.08
19+ $69.75
49+ $68.20
99+ $64.33
499+ $54.25
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
NTN - High Quality
Inside Diameter:
40mm
Style:
UCP
Bolt Hole Centres:
137mm
Technical
--- Dimensions
Shaft diameter 40mm
H 49.2mm
L 184mm
J 137mm
A 54mm
N 17mm
N<sub>1</sub> 20mm
H<sub>1</sub> 18mm
H<sub>2</sub> 98mm
L<sub>1</sub> 52mm
B 49.2mm
S 19mm
t<sub>2</sub> 9mm
H<sub>3</sub> 105mm
A<sub>5</sub> 90mm
Fixing bolt M14
--- Load rating
Dynamic load C<sub>r</sub> 32.5 kN
Static load C<sub>0r</sub> 17.8 kN
Fatigue load limit C<sub>u</sub> 1.24 kN
--- Unit information
Mass 2.7 kg
