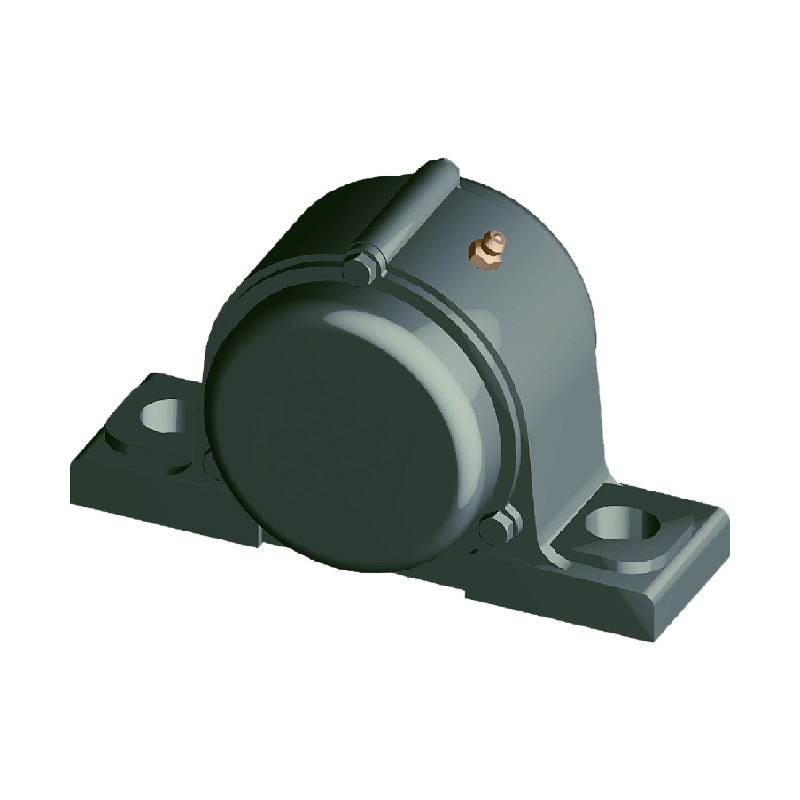

• NTN CM-UCP212D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 60mm Bore Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days
  • NTN
1 2

SKU: CM-UCP212D1-NTN

NTN CM-UCP212D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 60mm Bore Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days

NTN CM-UCP212D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 60mm Bore Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days
$127.52 ex VAT
$127.52 ex VAT
Sale Sold out

In stock

Price Break
3+ $85.41
4+ $80.61
9+ $79.66
19+ $78.70
49+ $77.74
99+ $76.78
499+ $71.98
999+ $71.02
1999+ $70.06
2999+ $69.10
4999+ $67.18

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
60mm
Style:
UCP
Bolt Hole Centres:
184mm
Technical
--- Dimensions
Shaft diameter 60mm
H 69.8mm
L 241mm
J 184mm
A 70mm
N 20mm
N<sub>1</sub> 23mm
H<sub>1</sub> 25mm
H<sub>2</sub> 138mm
L<sub>1</sub> 70mm
B 65.1mm
S 25.4mm
t<sub>2</sub> 12mm
H<sub>3</sub> 143mm
A<sub>5</sub> 115mm
Fixing bolt M16
--- Load rating
Dynamic load C<sub>r</sub> 58 kN
Static load C<sub>0r</sub> 36 kN
Fatigue load limit C<sub>u</sub> 2.83 kN
--- Unit information
Mass 6 kg
