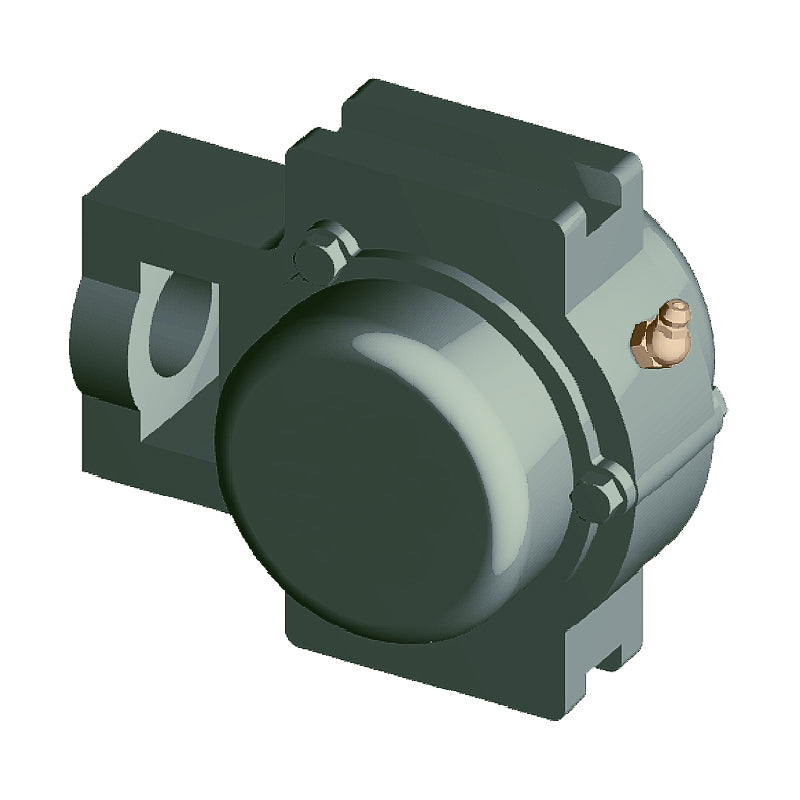

• NTN CM-UCT207D1 Metric Cast Iron Take Up Unit with 35mm Bore Bearing Unit with Cast Iron Cover - Closed Version - Allow 2-3 Days
  • NTN
1 2

SKU: CM-UCT207D1-NTN

NTN CM-UCT207D1 Metric Cast Iron Take Up Unit with 35mm Bore Bearing Unit with Cast Iron Cover - Closed Version - Allow 2-3 Days

NTN CM-UCT207D1 Metric Cast Iron Take Up Unit with 35mm Bore Bearing Unit with Cast Iron Cover - Closed Version - Allow 2-3 Days
$65.96 ex VAT
$65.96 ex VAT
Sale Sold out

In stock

Price Break
3+ $44.18
4+ $41.70
9+ $41.20
19+ $40.70
49+ $40.21
99+ $39.71
499+ $37.23
999+ $36.73
1999+ $36.24
2999+ $35.74
4999+ $34.75

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
35mm
Style:
UCT
Technical

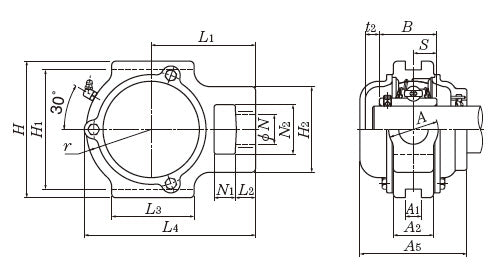

--- Dimensions
Shaft diameter 35mm
N<sub>1</sub> 16mm
L<sub>2</sub> 15mm
H<sub>2</sub> 64mm
N<sub>2</sub> 37mm
N 22mm
L<sub>3</sub> 64mm
A<sub>1</sub> 12mm
H<sub>1</sub> 89mm
H 102mm
L 129mm
A<sub>2</sub> 30mm
A 37mm
r 51mm
L<sub>1</sub> 78mm
B 42.9mm
S 17.5mm
t<sub>2</sub> 10mm
L<sub>4</sub> 129mm
A<sub>5</sub> 80mm
--- Load rating
Dynamic load C<sub>r</sub> 28.4 kN
Static load C<sub>0r</sub> 15.3 kN
Fatigue load limit C<sub>u</sub> 1.09 kN
--- Unit information
Mass 2.1 kg
