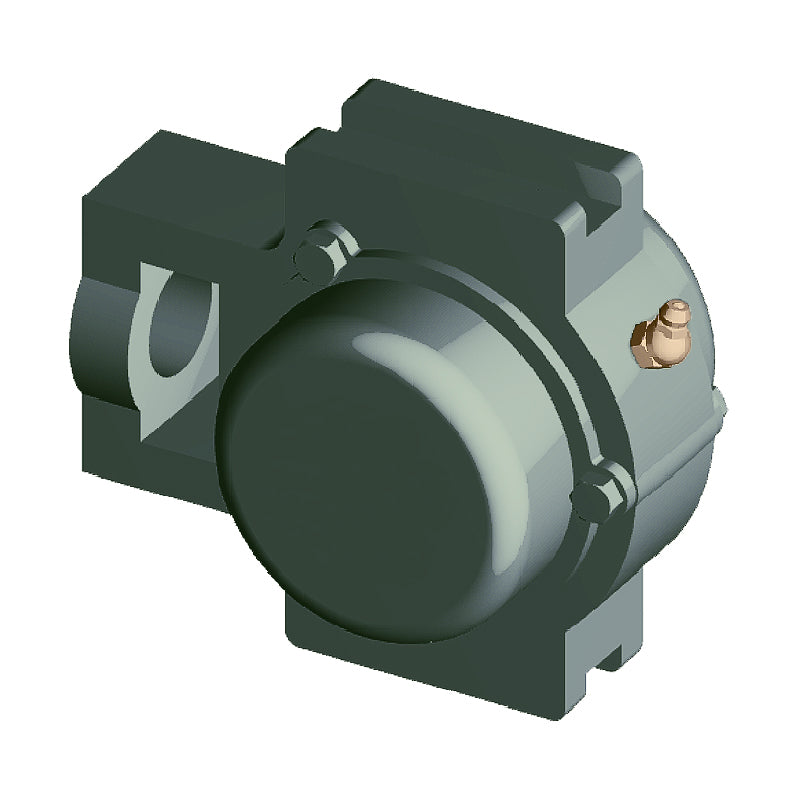

• NTN CM-UCT212D1 Metric Cast Iron Take Up Unit with 60mm Bore Bearing Unit with Cast Iron Cover - Closed Version - Allow 2-3 Days
  • NTN
1 2

SKU: CM-UCT212D1-NTN

NTN CM-UCT212D1 Metric Cast Iron Take Up Unit with 60mm Bore Bearing Unit with Cast Iron Cover - Closed Version - Allow 2-3 Days

NTN CM-UCT212D1 Metric Cast Iron Take Up Unit with 60mm Bore Bearing Unit with Cast Iron Cover - Closed Version - Allow 2-3 Days
$131.91 ex VAT
$131.91 ex VAT
Sale Sold out

In stock

Price Break
3+ $88.36
4+ $83.40
9+ $82.40
19+ $81.41
49+ $80.42
99+ $79.42
499+ $74.46
999+ $73.47
1999+ $72.47
2999+ $71.48
4999+ $69.50

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
60mm
Style:
UCT
Technical
--- Dimensions
Shaft diameter 60mm
N<sub>1</sub> 32mm
L<sub>2</sub> 21mm
H<sub>2</sub> 102mm
N<sub>2</sub> 64mm
N 35mm
L<sub>3</sub> 102mm
A<sub>1</sub> 22mm
H<sub>1</sub> 130mm
H 146mm
L 194mm
A<sub>2</sub> 42mm
A 64mm
r 75mm
L<sub>1</sub> 119mm
B 65.1mm
S 25.4mm
t<sub>2</sub> 12mm
L<sub>4</sub> 194mm
A<sub>5</sub> 115mm
--- Load rating
Dynamic load C<sub>r</sub> 58 kN
Static load C<sub>0r</sub> 36 kN
Fatigue load limit C<sub>u</sub> 2.83 kN
--- Unit information
Mass 6.1 kg
