SKU: CM-UCT313D1-NTN

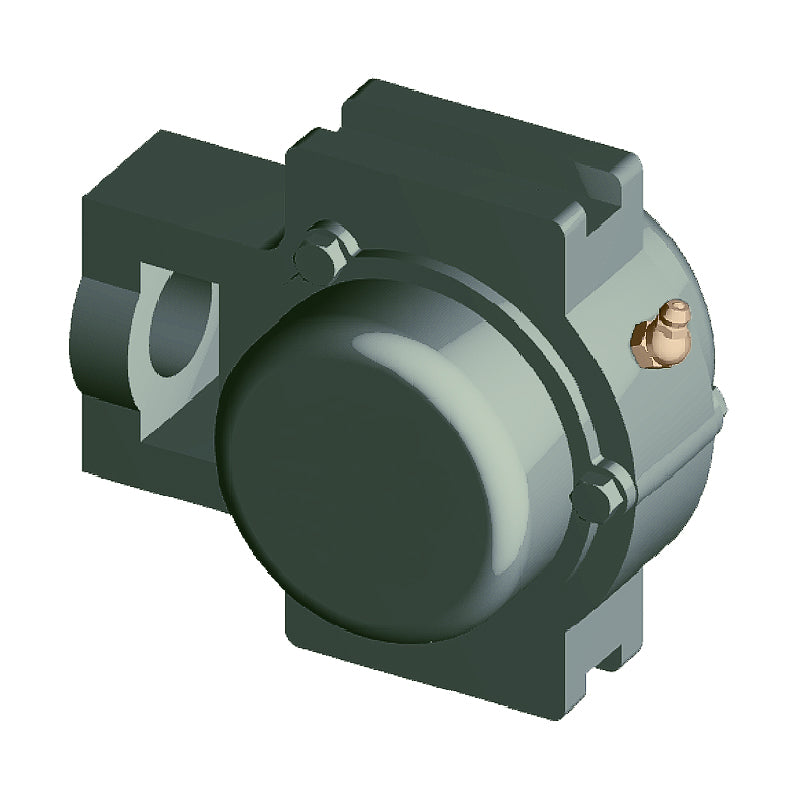

NTN CM-UCT313D1 Metric Cast Iron Take Up Unit with 65mm Bore Bearing Unit with Cast Iron Cover - Closed Version - Allow 2-3 Days
NTN CM-UCT313D1 Metric Cast Iron Take Up Unit with 65mm Bore Bearing Unit with Cast Iron Cover - Closed Version - Allow 2-3 Days
Out of stock
Share this product
Description
Description
UCT300 Series Heavy Duty Take Up Units: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 65mm
- Style:
- UCT
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 65mm |
| N<sub>1</sub> | 32mm |
| L<sub>2</sub> | 27mm |
| H<sub>2</sub> | 116mm |
| N<sub>2</sub> | 70mm |
| N | 43mm |
| L<sub>3</sub> | 134mm |
| A<sub>1</sub> | 26mm |
| H<sub>1</sub> | 170mm |
| H | 190mm |
| L | 238mm |
| A<sub>2</sub> | 50mm |
| A | 80mm |
| r | 92mm |
| L<sub>1</sub> | 146mm |
| B | 75mm |
| S | 30mm |
| t<sub>2</sub> | 19mm |
| L<sub>4</sub> | 244mm |
| A<sub>5</sub> | 140mm |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 103 kN |
| Static load C<sub>0r</sub> | 60 kN |
| Fatigue load limit C<sub>u</sub> | 4.6 kN |
| --- | Unit information |
| Mass | 12 kg |
