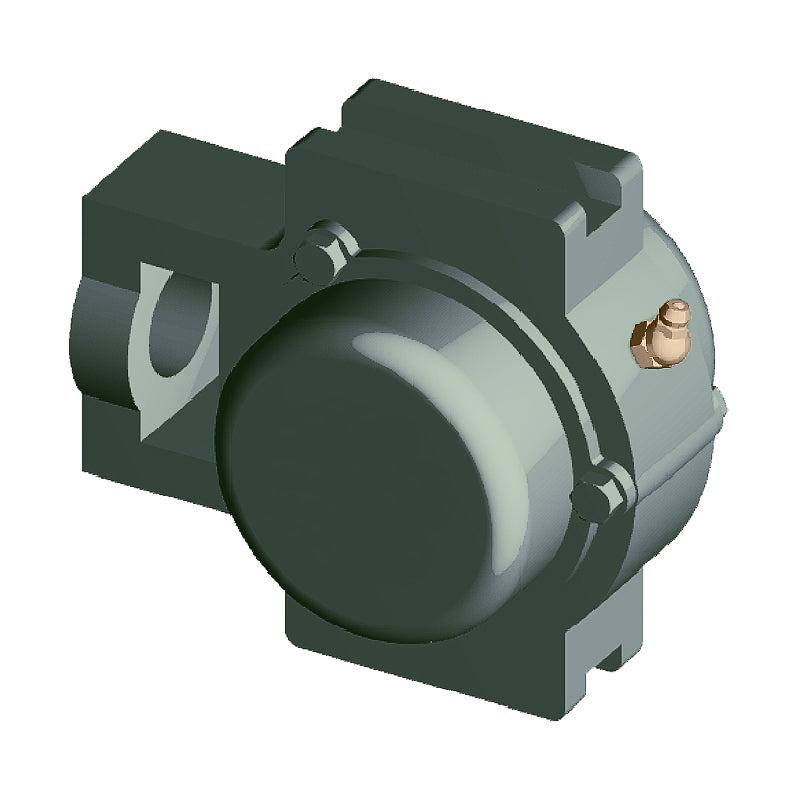

NTN CM-UCT316D1 Metric Cast Iron Take Up Unit with 80mm Bore Bearing Unit with Cast Iron Cover - Closed Version - Allow 2-3 Days
NTN CM-UCT316D1 Metric Cast Iron Take Up Unit with 80mm Bore Bearing Unit with Cast Iron Cover - Closed Version - Allow 2-3 Days
Regular price
$663.07
ex VAT
Regular price
Sale price
$663.07
ex VAT
In stock
Price Break
3+
$493.97
4+
$474.01
9+
$464.03
19+
$449.06
49+
$439.08
99+
$414.14
499+
$349.27
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UCT300 Series Heavy Duty Take Up Units: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 80mm
- Style:
- UCT
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 80mm |
| N<sub>1</sub> | 42mm |
| L<sub>2</sub> | 30mm |
| H<sub>2</sub> | 150mm |
| N<sub>2</sub> | 98mm |
| N | 53mm |
| L<sub>3</sub> | 160mm |
| A<sub>1</sub> | 30mm |
| H<sub>1</sub> | 204mm |
| H | 230mm |
| L | 282mm |
| A<sub>2</sub> | 60mm |
| A | 102mm |
| r | 108mm |
| L<sub>1</sub> | 174mm |
| B | 86mm |
| S | 34mm |
| t<sub>2</sub> | 18mm |
| L<sub>4</sub> | 287mm |
| A<sub>5</sub> | 155mm |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 136 kN |
| Static load C<sub>0r</sub> | 86.5 kN |
| Fatigue load limit C<sub>u</sub> | 6.05 kN |
| --- | Unit information |
| Mass | 20 kg |
