SKU: CM-UCT318D1-NTN

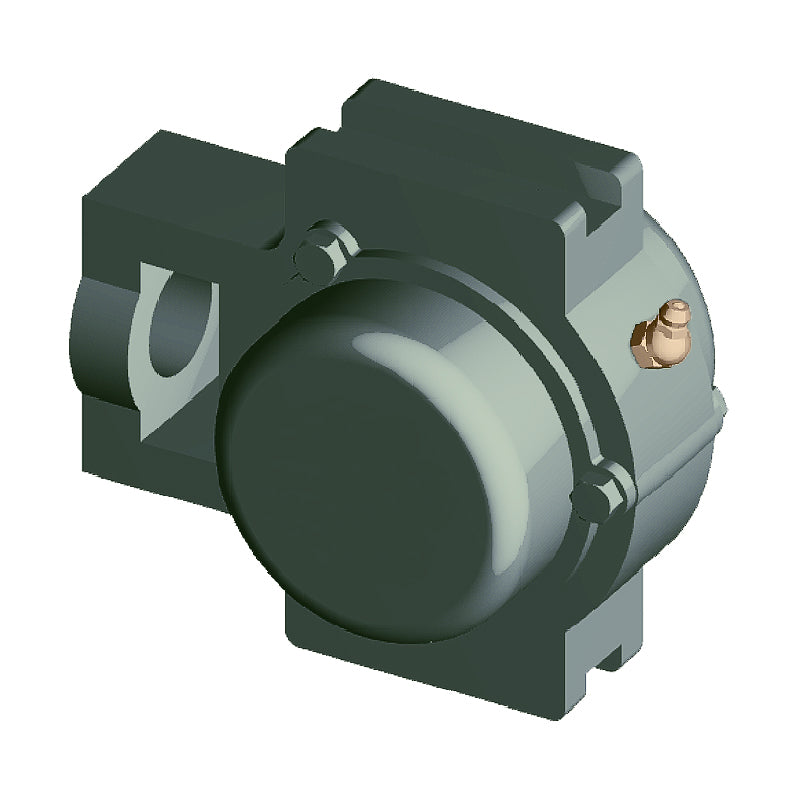

NTN CM-UCT318D1 Metric Cast Iron Take Up Unit with 90mm Bore Bearing Unit with Cast Iron Cover - Closed Version - Allow 2-3 Days
NTN CM-UCT318D1 Metric Cast Iron Take Up Unit with 90mm Bore Bearing Unit with Cast Iron Cover - Closed Version - Allow 2-3 Days
Regular price
$736.22
ex VAT
Regular price
Sale price
$736.22
ex VAT
In stock
Price Break
3+
$548.47
4+
$526.31
9+
$515.23
19+
$498.61
49+
$487.53
99+
$459.83
499+
$387.81
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UCT300 Series Heavy Duty Take Up Units: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 90mm
- Style:
- UCT
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 90mm |
| N<sub>1</sub> | 46mm |
| L<sub>2</sub> | 32mm |
| H<sub>2</sub> | 160mm |
| N<sub>2</sub> | 106mm |
| N | 57mm |
| L<sub>3</sub> | 175mm |
| A<sub>1</sub> | 32mm |
| H<sub>1</sub> | 228mm |
| H | 255mm |
| L | 312mm |
| A<sub>2</sub> | 66mm |
| A | 110mm |
| r | 120mm |
| L<sub>1</sub> | 192mm |
| B | 96mm |
| S | 40mm |
| t<sub>2</sub> | 21mm |
| L<sub>4</sub> | 317mm |
| A<sub>5</sub> | 170mm |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 158 kN |
| Static load C<sub>0r</sub> | 107 kN |
| Fatigue load limit C<sub>u</sub> | 7.1 kN |
| --- | Unit information |
| Mass | 27 kg |
