SKU: CM-UKT209D1/H2309X-NTN

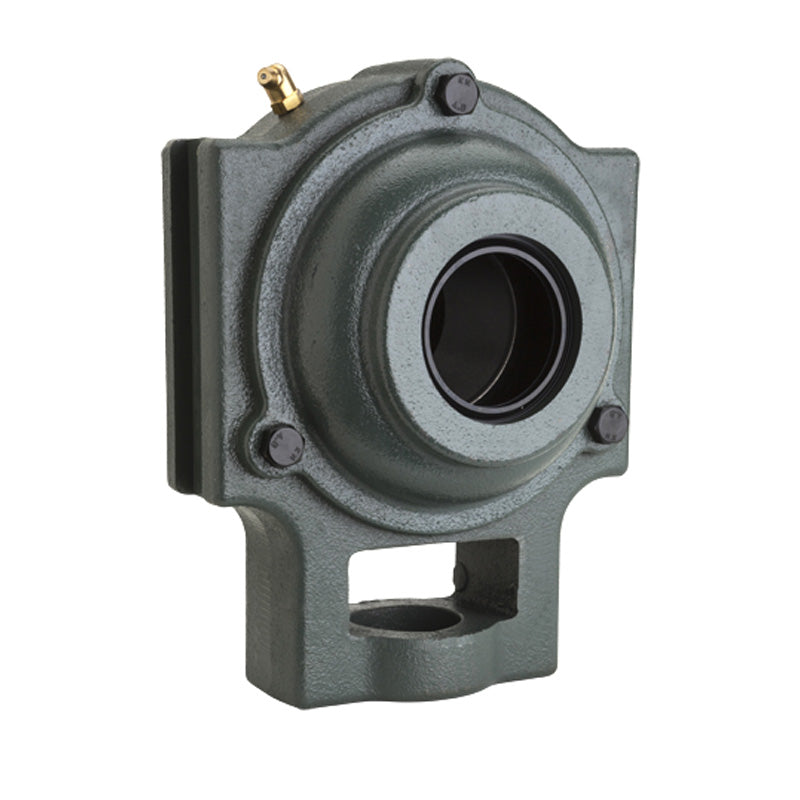

NTN CM-UKT209D1/H2309X Metric Cast Iron Take Up Unit with Cast Iron Cover - Closed Version - Insert and Adaptor Sleeve Fits 40mm Shaft - Allow 2-3 Days
NTN CM-UKT209D1/H2309X Metric Cast Iron Take Up Unit with Cast Iron Cover - Closed Version - Insert and Adaptor Sleeve Fits 40mm Shaft - Allow 2-3 Days
Regular price
$132.58
ex VAT
Regular price
Sale price
$132.58
ex VAT
In stock
Price Break
3+
$98.77
4+
$94.78
9+
$92.79
19+
$89.79
49+
$87.80
99+
$82.81
499+
$69.84
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Description
Description
UKT200 Series Normal Duty Take Up Units with Adaptor Sleeve Mounted: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, with adaptor
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 40mm
- Style:
- UKT
Technical
Technical

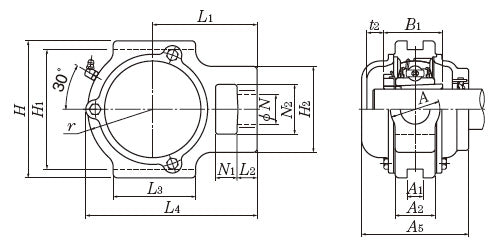

| Shaft diameter | 40mm |
|---|---|
| N<sub>1</sub> | 19mm |
| L<sub>2</sub> | 18mm |
| H<sub>2</sub> | 83mm |
| N<sub>2</sub> | 49mm |
| N | 29mm |
| L<sub>3</sub> | 83mm |
| A<sub>1</sub> | 16mm |
| H<sub>1</sub> | 102mm |
| H | 117mm |
| A<sub>2</sub> | 35mm |
| A | 49mm |
| r | 57mm |
| L<sub>1</sub> | 88mm |
| B<sub>1</sub> | 50mm |
| t<sub>2</sub> | 16mm |
| L<sub>4</sub> | 145.5mm |
| A<sub>5</sub> | 95mm |
| Mass | 3.5 kg |
