SKU: CM-UKT316ED1/HE2316X-NTN

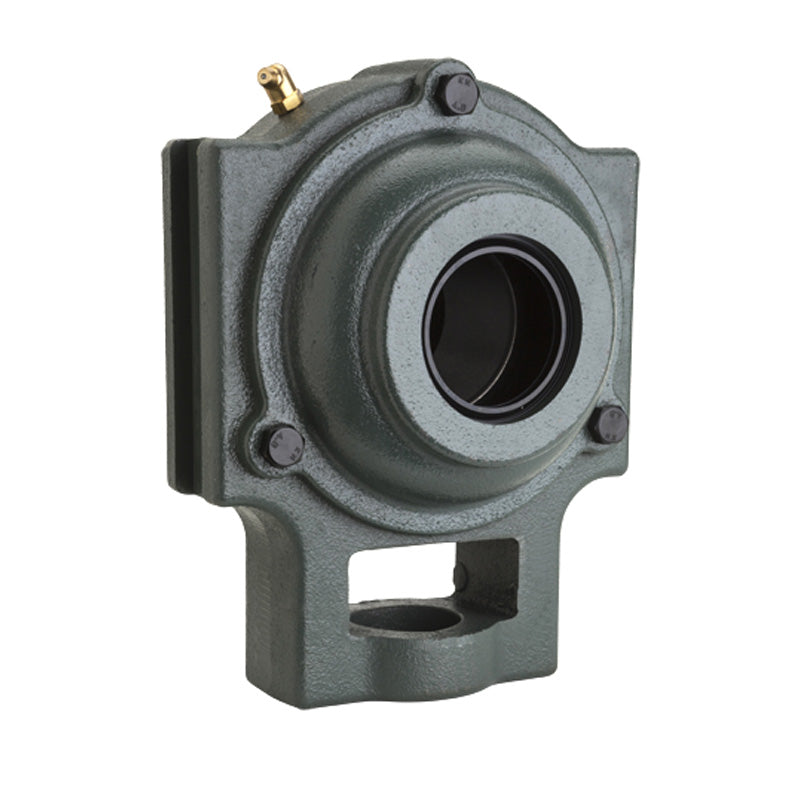

NTN CM-UKT316ED1/HE2316X Imperial Cast Iron Take Up Unit with Cast Iron Cover - Closed Version - Insert and Adaptor Sleeve Fits 2-3/4 inch Shaft - Allow 2-3 Days
NTN CM-UKT316ED1/HE2316X Imperial Cast Iron Take Up Unit with Cast Iron Cover - Closed Version - Insert and Adaptor Sleeve Fits 2-3/4 inch Shaft - Allow 2-3 Days
Out of stock
Description
Description

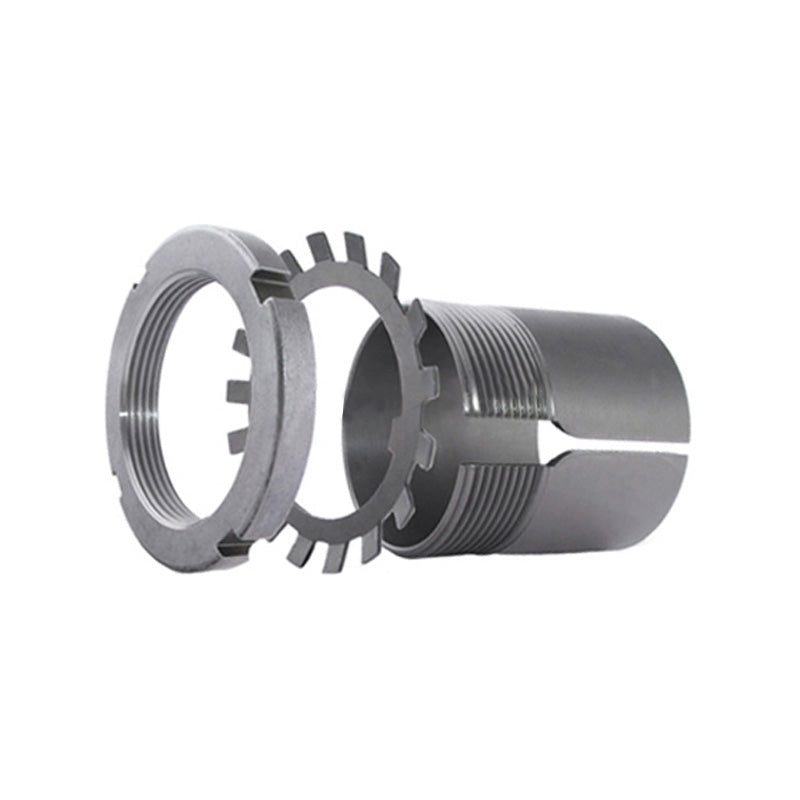

UKT300 Series Heavy Duty Take-Up Unit with Adaptor Sleeve Mounted: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, with adaptor
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 69.85mm = 2.75 (2-3/4) inch
- Style:
- UKT
Technical
Technical
| Shaft diameter | 2-3/4 inch |
|---|---|
| N<sub>1</sub> | 1-21/32 inch |
| L<sub>2</sub> | 1-3/16 inch |
| H<sub>2</sub> | 5-29/32 inch |
| N<sub>2</sub> | 3-27/32 inch |
| N | 2-3/32 inch |
| L<sub>3</sub> | 6-5/16 inch |
| A<sub>1</sub> | 1.181 inch |
| H<sub>1</sub> | 8-1/32 inch |
| H | 9-1/16 inch |
| A<sub>2</sub> | 2-3/8 inch |
| A | 4-1/32 inch |
| r | 4-1/4 inch |
| L<sub>1</sub> | 6-27/32 inch |
| B<sub>1</sub> | 3.071 inch |
| t | 15/16 inch |
| L<sub>4</sub> | 11-5/16 inch |
| A<sub>5</sub> | 6-3/32 inch |
| Mass | 46 lbs |
