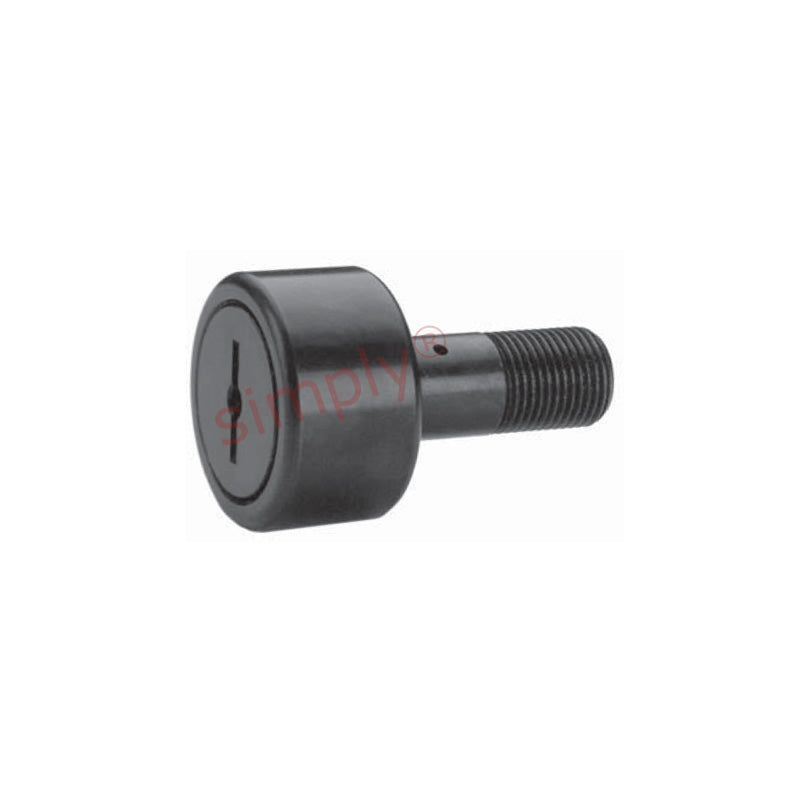

IKO CNB128S Sealed and Slotted Cylindrical Cam Follower 4 inch Outside Diameter Allow 7-10 Days
IKO CNB128S Sealed and Slotted Cylindrical Cam Follower 4 inch Outside Diameter Allow 7-10 Days
Out of stock
Description
Description
|
Sealed Cam Follower with Slotted Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. Benefits: Suitable for many cam or track roller applications with moderate loading and shock, sealed to help prevent contamination and retain lubrication. |
- Brand / Quality:
- IKO - High Quality
- Outside Diameter:
- 101.6mm = 4 inch
- Width:
- 57.15mm = 2.25 (2-1/4) inch
- Pitch:
- UNF 1-1/2-12
Technical
Technical
| A | 4 inch |
|---|---|
| B | 2.25 inch |
| C | 1.5 inch |
| D | 3.5 inch |
| E | 1.5 inch |
| Thread class 2A F | 1-1/2-12 UNF |
| G | 3/4 inch |
| H | 1/8 inch |
| J | 1/4 inch |
| Min boss diameter | 2-9/32 inch |
| Recommended bore | 1.5 inch |
| Recommended torque | 5000 lbf-in |
| Max static capacity | 44770 lbs |
| Basic dynamic rating | 29985 lbs |
