SKU: CNB-16

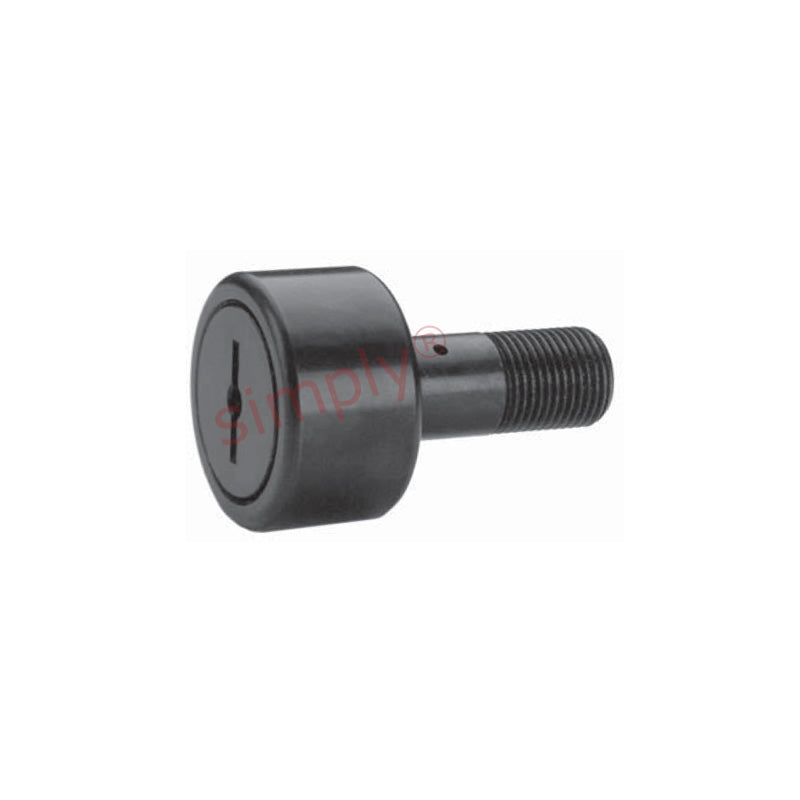

Major Brand CNB16 Slotted Cylindrical Cam Follower 1/2 inch Outside Diameter
- Regular price
- $37.72 ex VAT
- Sale price
- $37.72
- Regular price
-
In stock
Quantity Price Breaks
3
$33.57
4
$31.68
9
$31.31
19
$30.93
29
$30.55
39
$30.18
49
$28.29
59
$27.91
249
$27.54
499
$27.16
999
$26.40
SKU:
CNB-16
Major Brand CNB16 Slotted Cylindrical Cam Follower 1/2 inch Outside Diameter
- Regular price
- $37.72 ex VAT
- Sale price
- $37.72
- Regular price
-
Description
|
Cam Follower with Slotted Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. Benefits: Suitable for many cam or track roller applications with moderate loading and shock. |
Technical
| A | = | 0.5 inch |
| B | = | 0.375 inch |
| C | = | 0.19 inch |
| D | = | 0.625 inch |
| E | = | 0.25 inch |
| Thread class 2A F | = | 10-32 UNF |
| J | = | 1/8 inch |
| Min boss diameter | = | 19/64 inch |
| Recommended bore | = | 0.19 inch |
| Recommended torque | = | 15 lbf-in |
| Max static capacity | = | 1085 lbs |
| Basic dynamic rating | = | 930 lbs |
