• Major Brand CNB16N Slotted Cylindrical Cam Follower 1/2 inch Outside Diameter Allow 7-10 Days
1 1

SKU: CNB-16-N

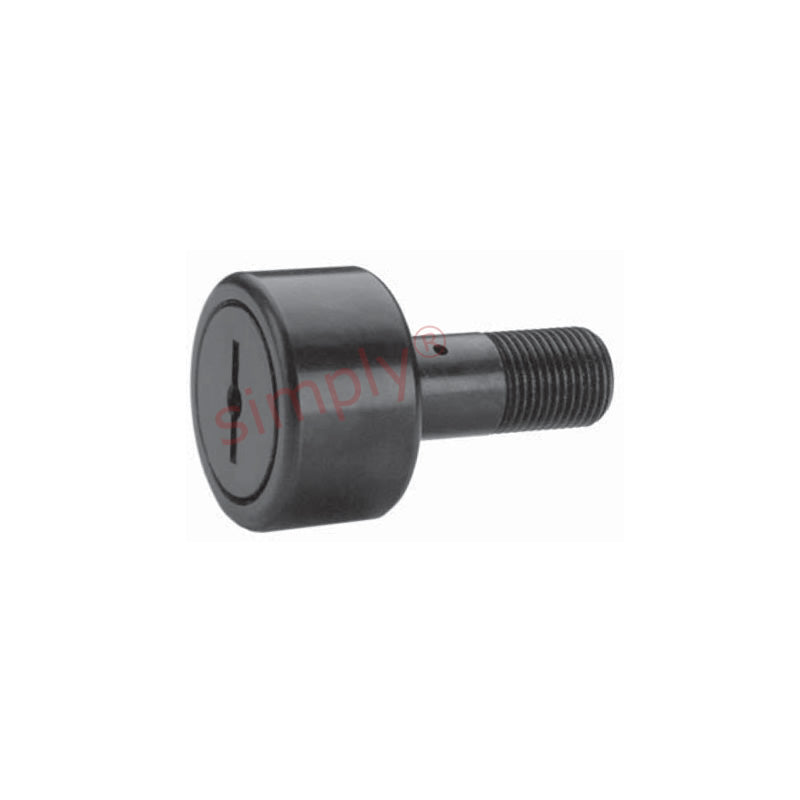

Major Brand CNB16N Slotted Cylindrical Cam Follower 1/2 inch Outside Diameter Allow 7-10 Days

Major Brand CNB16N Slotted Cylindrical Cam Follower 1/2 inch Outside Diameter Allow 7-10 Days
$37.27 ex VAT
$37.27 ex VAT
Sale Sold out

Equivalent to: CF-1/2-N CR-1/2-A CR-8

In stock

Price Break
3+ $24.96
4+ $23.56
9+ $23.28
19+ $23.00
29+ $22.72
39+ $22.44
49+ $21.04
59+ $20.76
249+ $20.48
499+ $20.20
999+ $19.64

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Outside Diameter:
12.7mm = 0.5 (1/2) inch
Width:
8.73mm = 0.344 (11/32) inch
Pitch:
UNF 10-32
Technical
A 0.5 inch
B 0.344 inch
C 0.19 inch
D 0.5 inch
E 0.25 inch
Thread class 2A F 10-32 UNF
J 1/8 inch
Min boss diameter 19/64 inch
Recommended bore 0.19 inch
Recommended torque 15 lbf-in
Max static capacity 720 lbs
Basic dynamic rating 620 lbs
