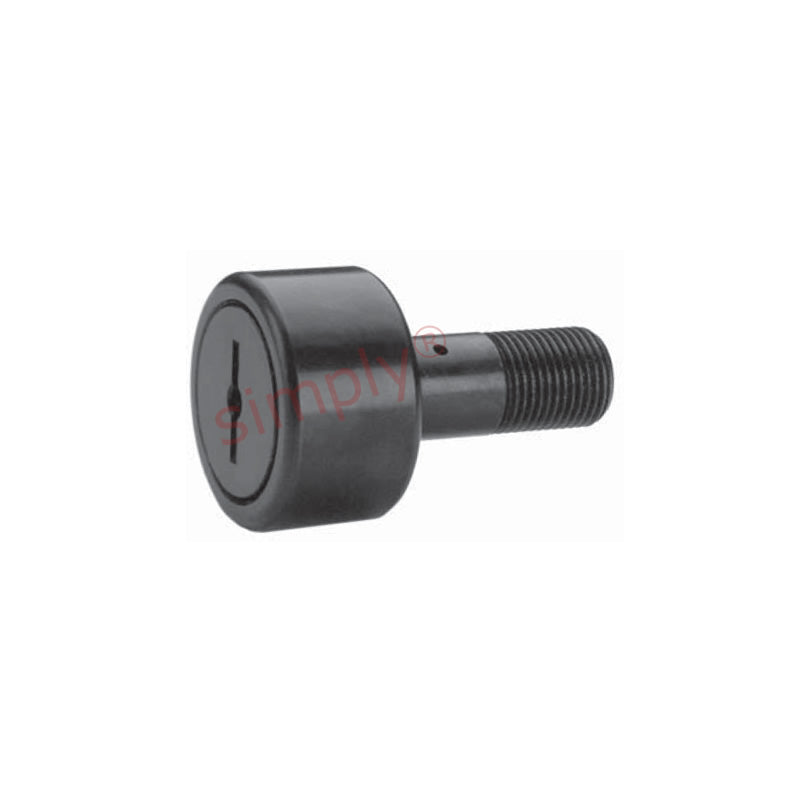

• Major Brand CNB16S Sealed and Slotted Cylindrical Cam Follower 1/2 inch Outside Diameter
1 1

SKU: CNB-16-S

Major Brand CNB16S Sealed and Slotted Cylindrical Cam Follower 1/2 inch Outside Diameter

Major Brand CNB16S Sealed and Slotted Cylindrical Cam Follower 1/2 inch Outside Diameter
$40.66 ex VAT
$40.66 ex VAT
Sale Sold out

Equivalent to: CF-1/2-S S-16-L CR-1/2-X CRS-8-1

In stock

Price Break
3+ $27.23
4+ $25.70
9+ $25.40
19+ $25.09
29+ $24.79
39+ $24.48
49+ $22.95
59+ $22.64
249+ $22.34
499+ $22.03
999+ $21.42

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Outside Diameter:
12.7mm = 0.5 (1/2) inch
Width:
9.53mm = 0.375 (3/8) inch
Pitch:
UNF 10-32
Technical
A 0.5 inch
B 0.375 inch
C 0.19 inch
D 0.625 inch
E 0.25 inch
Thread class 2A F 10-32 UNF
J 1/8 inch
Min boss diameter 19/64 inch
Recommended bore 0.19 inch
Recommended torque 15 lbf-in
Max static capacity 1085 lbs
Basic dynamic rating 930 lbs
