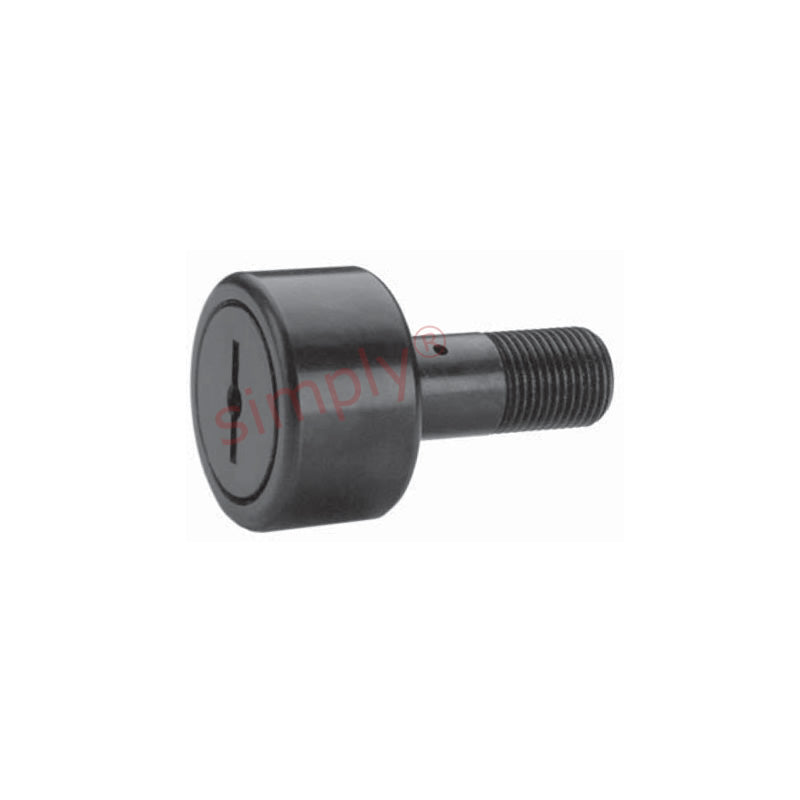

• Major Brand CNB20 Slotted Cylindrical Cam Follower 5/8 inch Outside Diameter Allow 7-10 Days
1 1

SKU: CNB-20

Major Brand CNB20 Slotted Cylindrical Cam Follower 5/8 inch Outside Diameter Allow 7-10 Days

Major Brand CNB20 Slotted Cylindrical Cam Follower 5/8 inch Outside Diameter Allow 7-10 Days
$37.27 ex VAT
$37.27 ex VAT
Sale Sold out

Equivalent to: CF-5/8 S-20 CR-5/8 CR-10-1

In stock

Price Break
3+ $24.96
4+ $23.56
9+ $23.28
19+ $23.00
29+ $22.72
39+ $22.44
49+ $21.04
59+ $20.76
249+ $20.48
499+ $20.20
999+ $19.64

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Outside Diameter:
15.88mm = 0.625 (5/8) inch
Width:
11.11mm = 0.437 (7/16) inch
Pitch:
UNF 1/4-28
Technical
A 0.625 inch
B 0.4375 inch
C 0.25 inch
D 0.75 inch
E 0.312 inch
Thread class 2A F 1/4-28 UNF
J 1/8 inch
Min boss diameter 23/64 inch
Recommended bore 0.25 inch
Recommended torque 35 lbf-in
Max static capacity 1215 lbs
Basic dynamic rating 995 lbs
