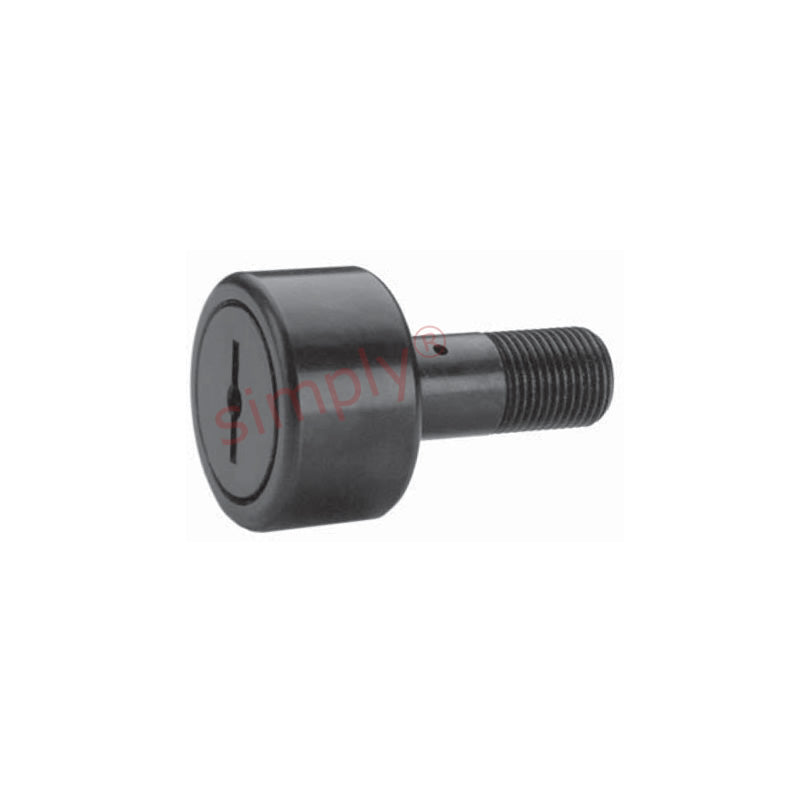

• Major Brand CNB20NS Sealed and Slotted Cylindrical Cam Follower 5/8 inch Outside Diameter Allow 7-10 Days
1 1

SKU: CNB-20-NS

Major Brand CNB20NS Sealed and Slotted Cylindrical Cam Follower 5/8 inch Outside Diameter Allow 7-10 Days

Major Brand CNB20NS Sealed and Slotted Cylindrical Cam Follower 5/8 inch Outside Diameter Allow 7-10 Days
$40.66 ex VAT
$40.66 ex VAT
Sale Sold out

Equivalent to: CF-5/8-NS CR-5/8A-X CRS-10

In stock

Price Break
3+ $27.23
4+ $25.70
9+ $25.40
19+ $25.09
29+ $24.79
39+ $24.48
49+ $22.95
59+ $22.64
249+ $22.34
499+ $22.03
999+ $21.42

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Outside Diameter:
15.88mm = 0.625 (5/8) inch
Width:
10.32mm = 0.406 (13/32) inch
Pitch:
UNF 1/4-28
Technical
A 0.625 inch
B 0.406 inch
C 0.25 inch
D 0.625 inch
E 0.312 inch
Thread class 2A F 1/4-28 UNF
J 1/8 inch
Min boss diameter 23/64 inch
Recommended bore 0.25 inch
Recommended torque 35 lbf-in
Max static capacity 1215 lbs
Basic dynamic rating 995 lbs
