SKU: CNB-24

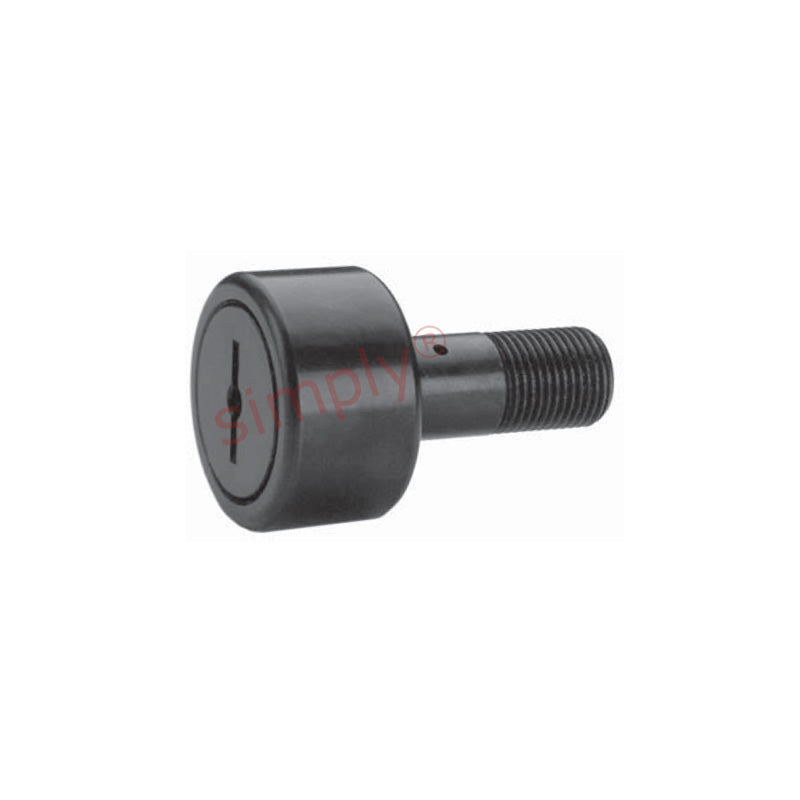

Major Brand CNB24 Slotted Cylindrical Cam Follower 3/4 inch Outside Diameter
- Regular price
- $34.29 ex VAT
- Sale price
- $34.29
- Regular price
-
In stock
Quantity Price Breaks
3
$30.52
4
$28.80
9
$28.46
19
$28.12
29
$27.77
39
$27.43
49
$25.72
59
$25.37
249
$25.03
499
$24.69
999
$24.00
SKU:
CNB-24
Major Brand CNB24 Slotted Cylindrical Cam Follower 3/4 inch Outside Diameter
- Regular price
- $34.29 ex VAT
- Sale price
- $34.29
- Regular price
-
Description
|
Cam Follower with Slotted Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. Benefits: Suitable for many cam or track roller applications with moderate loading and shock. |
Technical
| A | = | 0.75 inch |
| B | = | 0.5 inch |
| C | = | 0.375 inch |
| D | = | 0.875 inch |
| E | = | 0.375 inch |
| Thread class 2A F | = | 3/8-24 UNF |
| G | = | 1/4 inch |
| H | = | 3/32 inch |
| J | = | 3/16 inch |
| Min boss diameter | = | 1/2 inch |
| Recommended bore | = | 0.375 inch |
| Recommended torque | = | 95 lbf-in |
| Max static capacity | = | 2065 lbs |
| Basic dynamic rating | = | 1660 lbs |
